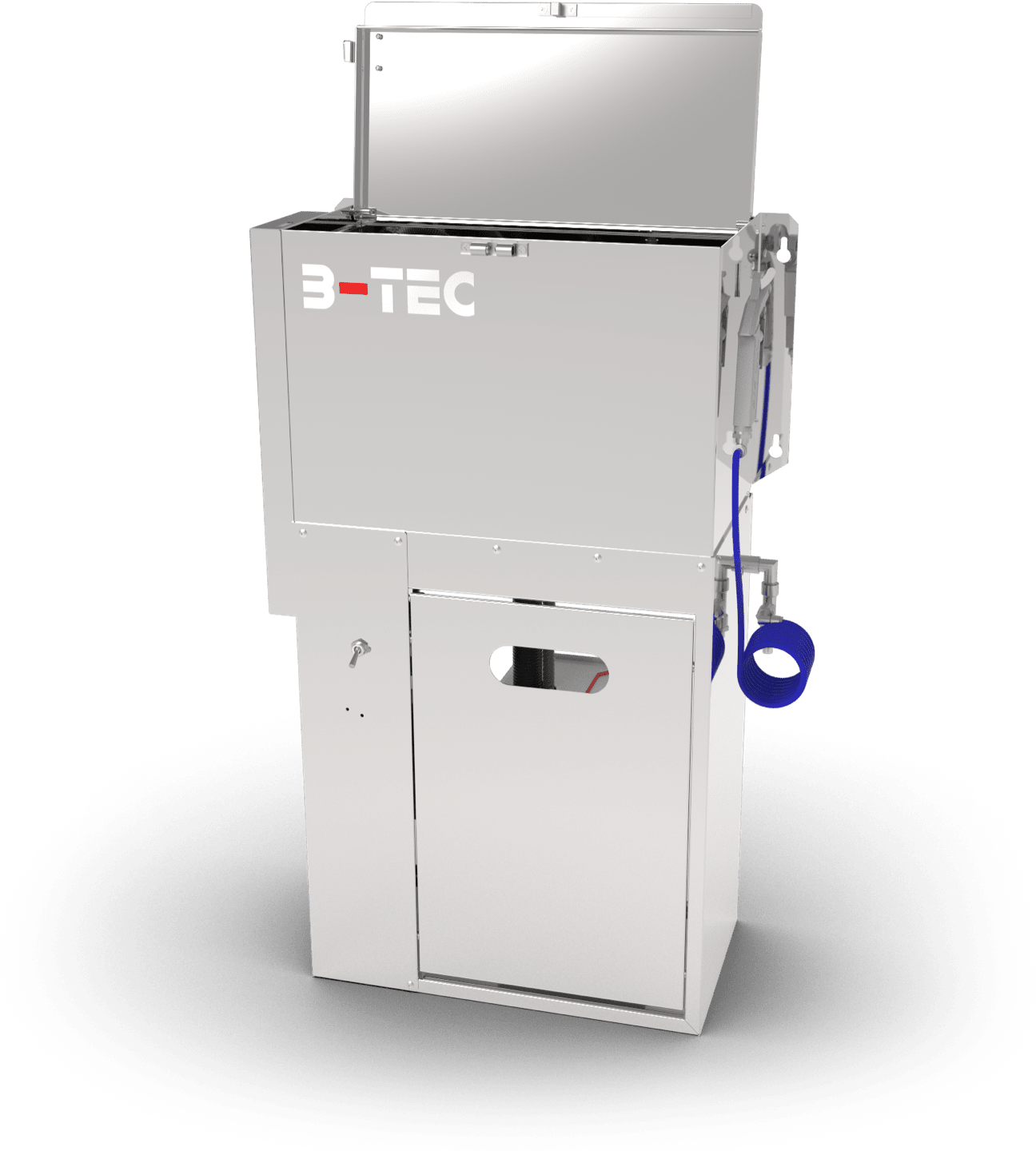

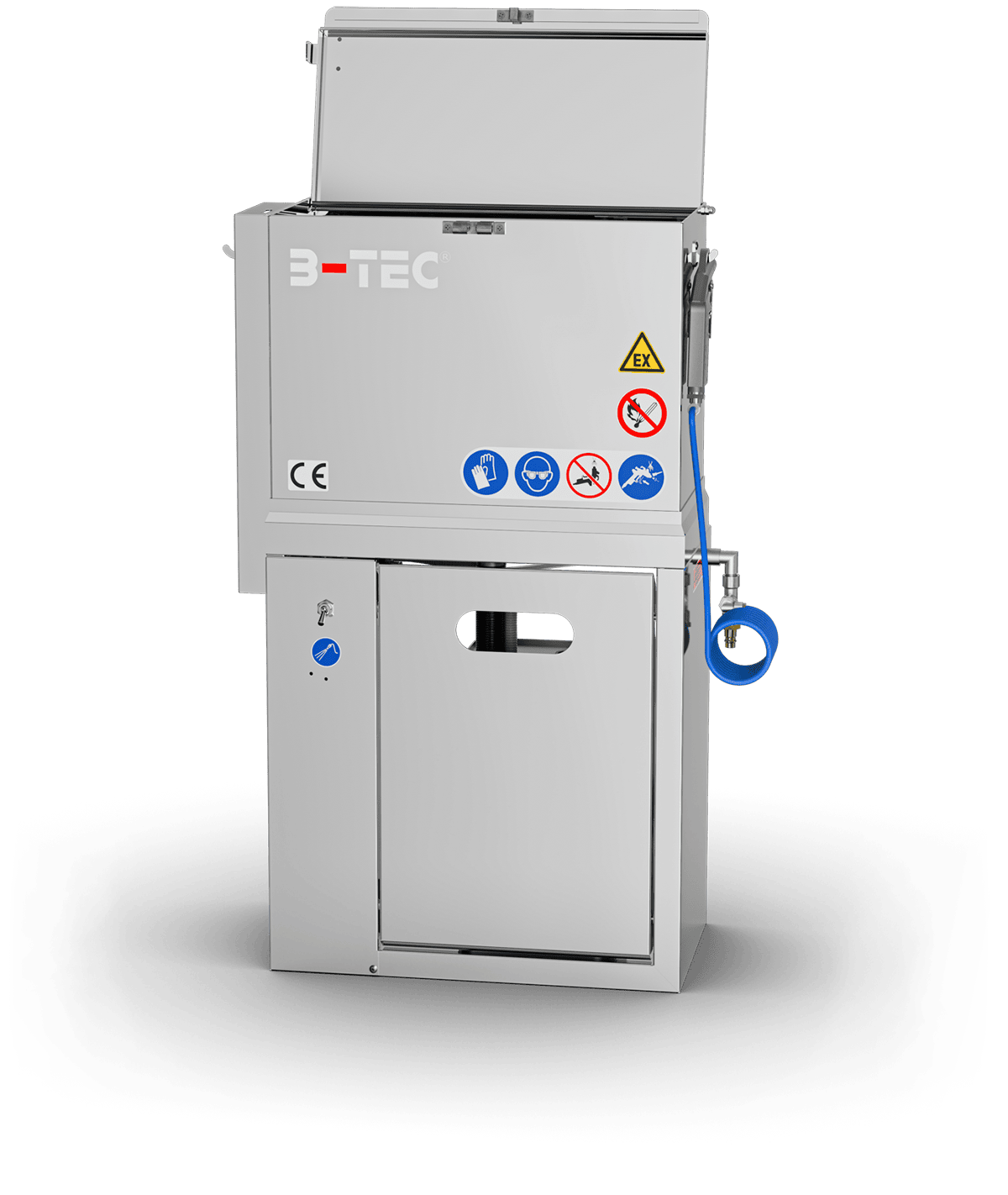

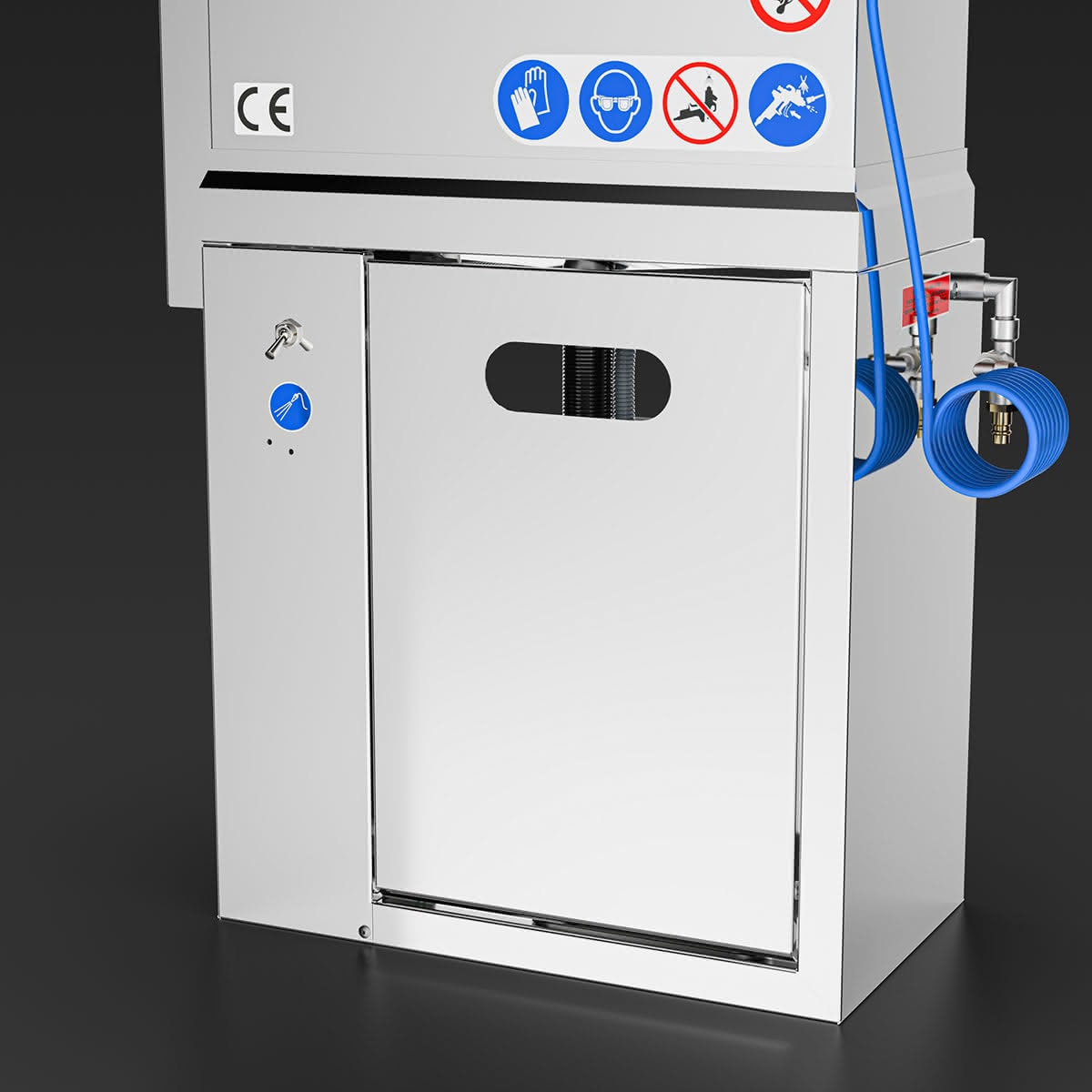

SPEEDBOX 2
Intermediate rinsing station without compromise.
Pump-operated intermediate rinsing station for colour changes inside the spray booth.
SPEEDBOX 2
With the help of the Speebox 2, intermediate rinsing when changing colours within the spray booth is child’s play.
Specially designed for disposable cup systems in combination with water-based paints, the paint spray gun is 100% automatically cleaned from the inside, thus achieving a significantly better cleaning performance than comparable manual systems.
Additionally equipped with the proven B-TEC air flow system, it is not necessary to remove the air cap and the paint spray gun is immediately ready for use again.

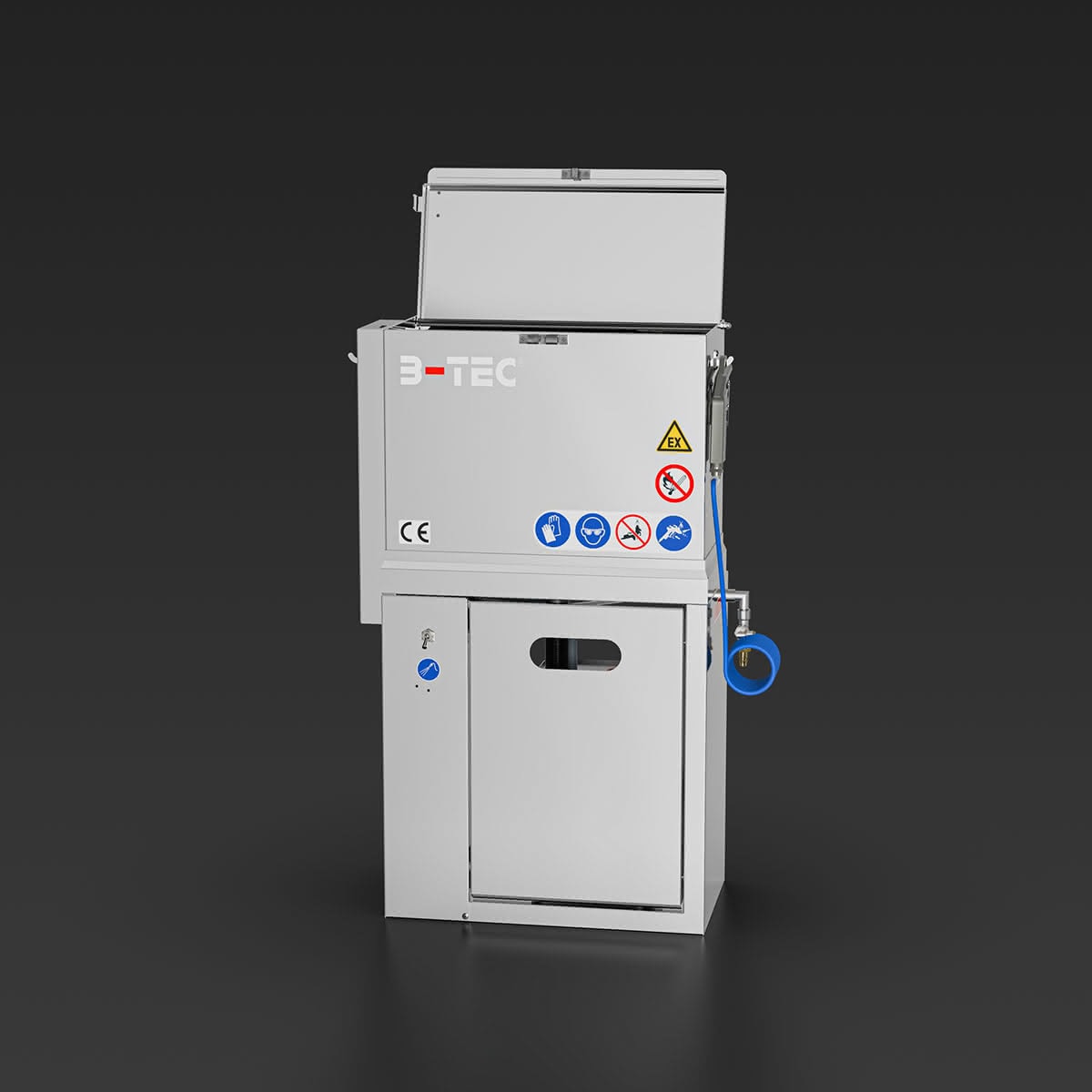

Compact unit for wall mounting.
Highlights
- Compact washer for wall mounting
- for automatic internal cleaning of spray guns
- cleaning with recirculating fluid – lowest cleaning fluid consumption
- pressurized air flow system protects spray guns during the automatic cleaning process – removal of air caps not necessary
- only for water-based paints
- designed to be used with disposable cup systems inside the spray booth
- significantly better cleaning results compared to manual intermediate cleaning stations
- no ingress of liquids into the filter mats, as cleaning liquids are used in the recirculation system
- brilliant cleaning results if used with B-TEC-H2O-Cleaners
PRODUCT ADVANTAGES
Kalrez Diaphragm
With the Kalrez diaphragm our pump is resistant against 1800 different chemicals. Made of corrosion-resistant material, it withstands toughest working conditions in the long term – without a maintenance
requirement.
B-TEC H2O CLEANERS
Can be used with B-TEC-H2O-Cleaners.
ADJUSTMENT Options
All features fully adjustable.

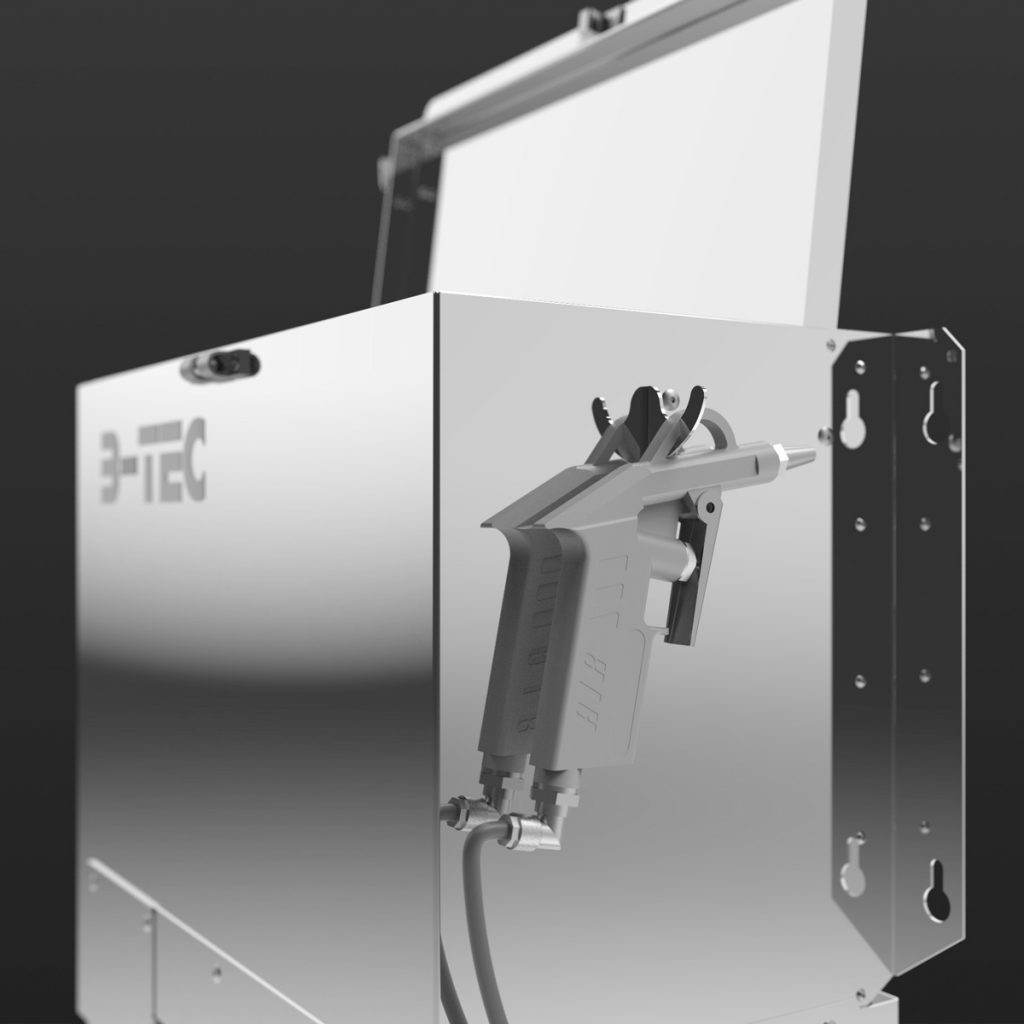

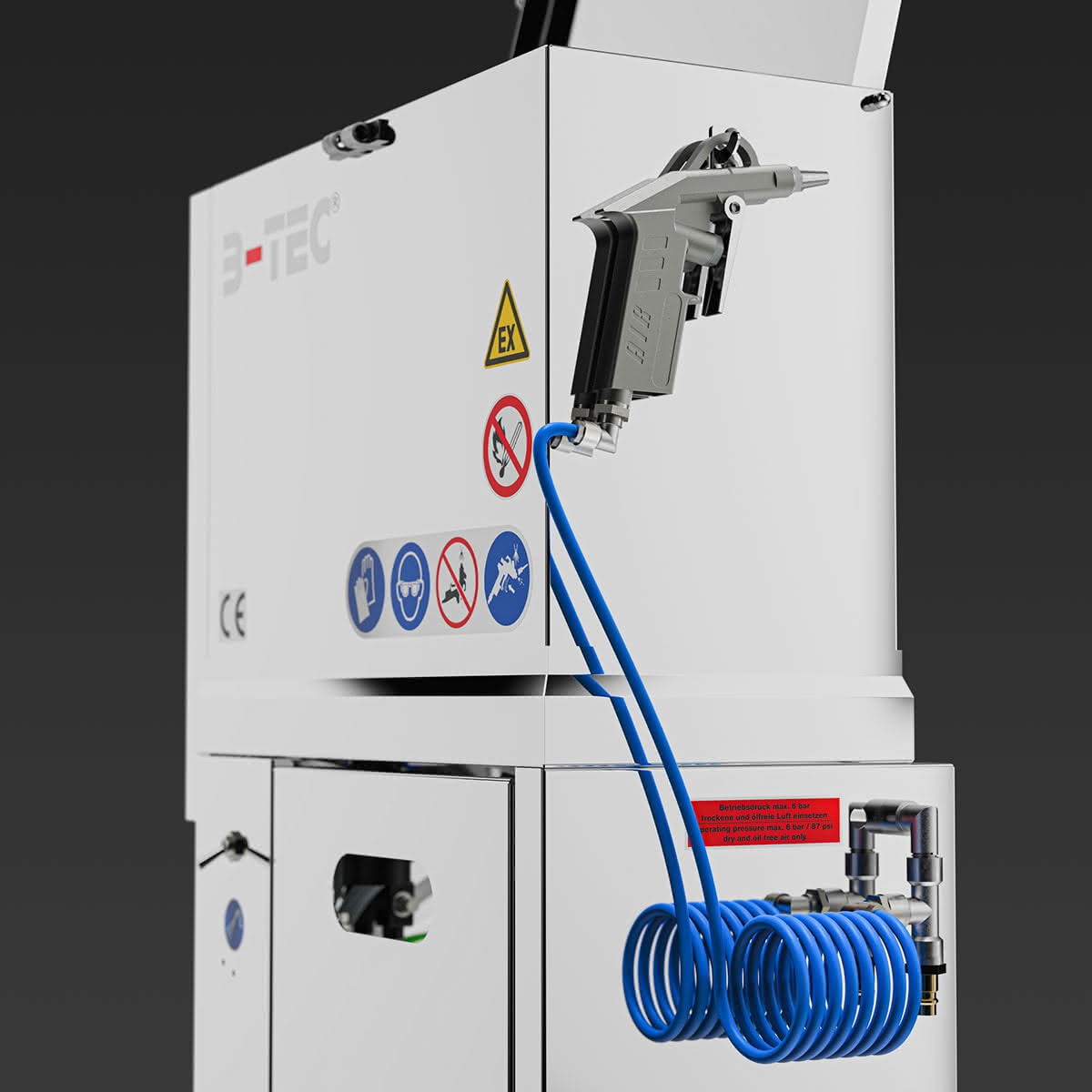

B-TEC air flow system

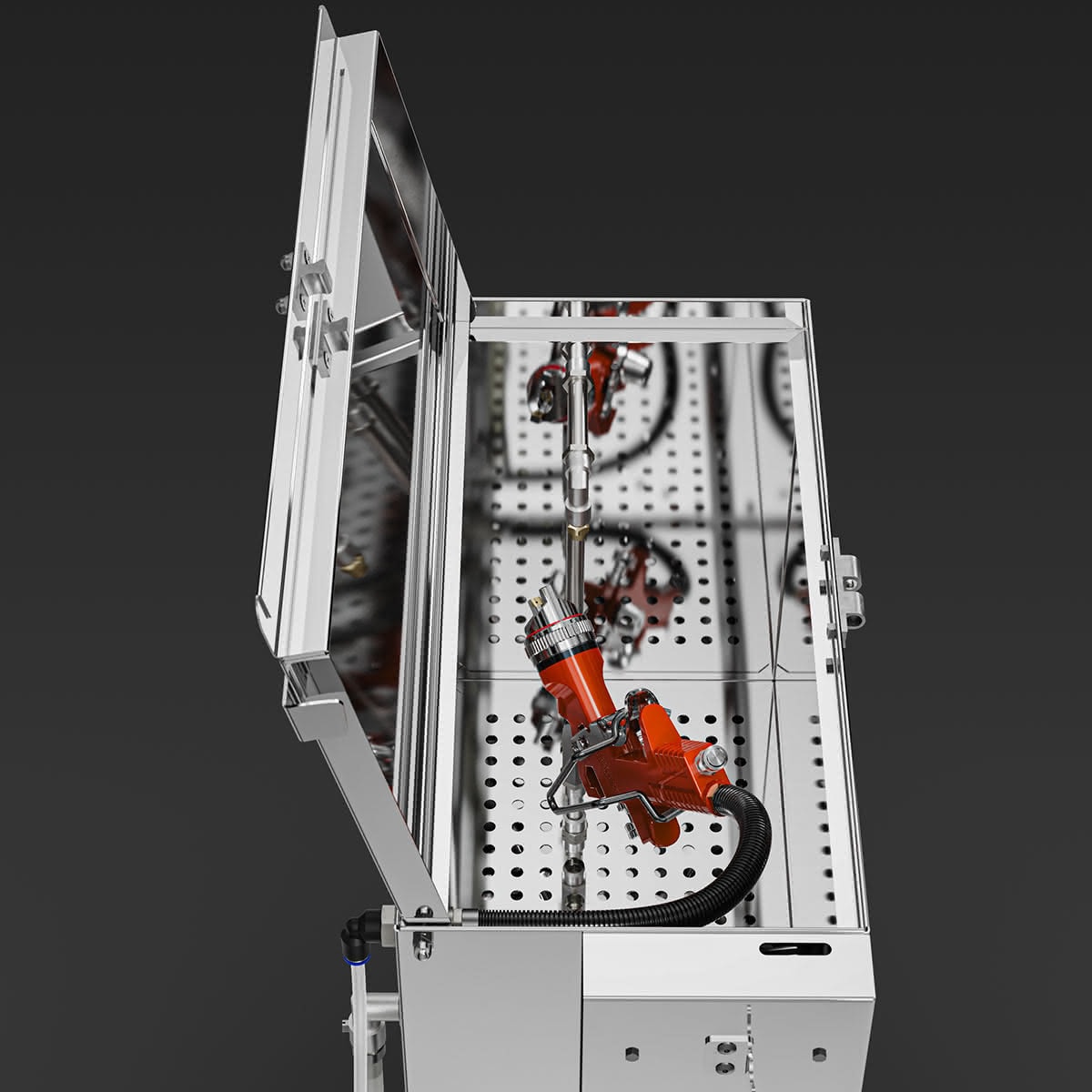

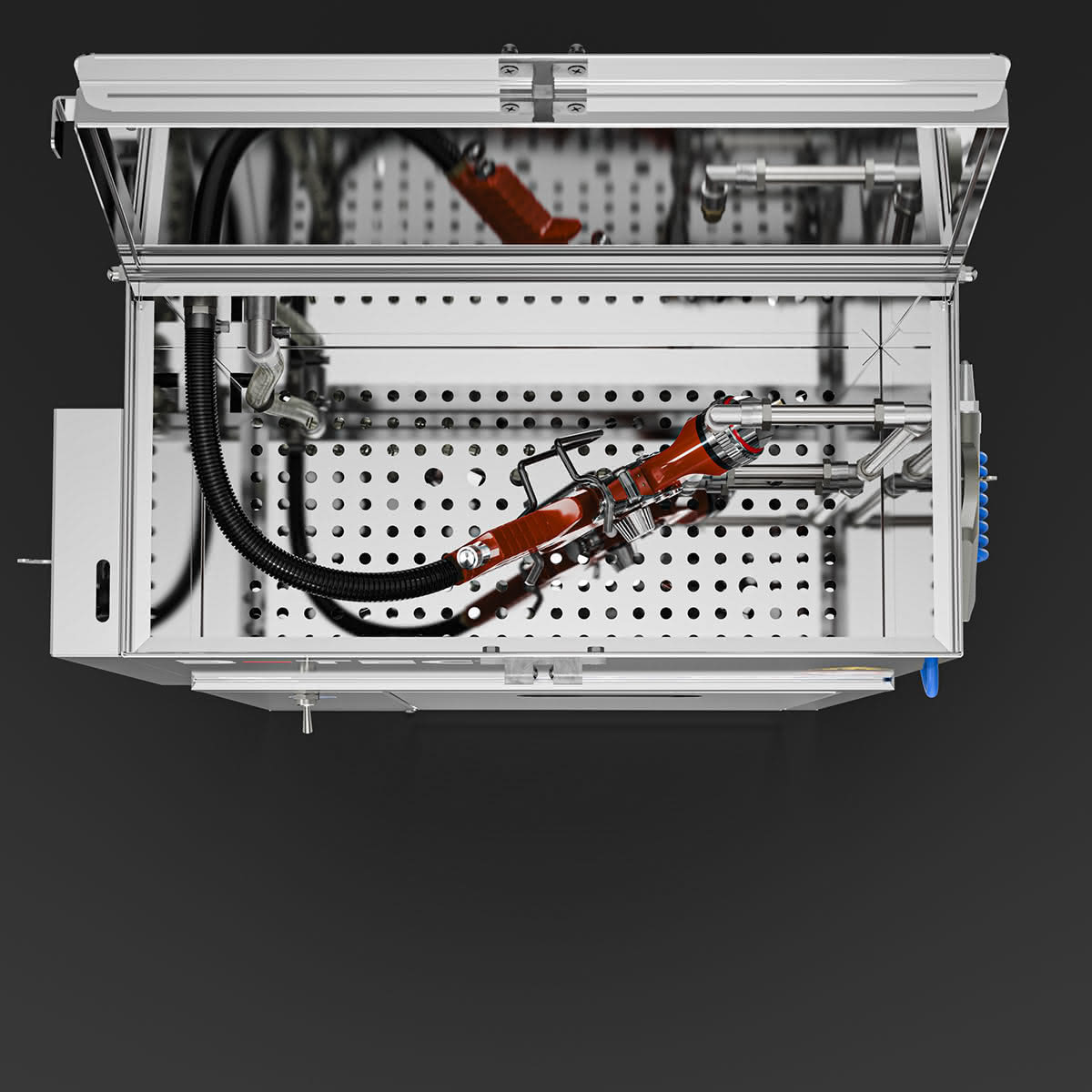

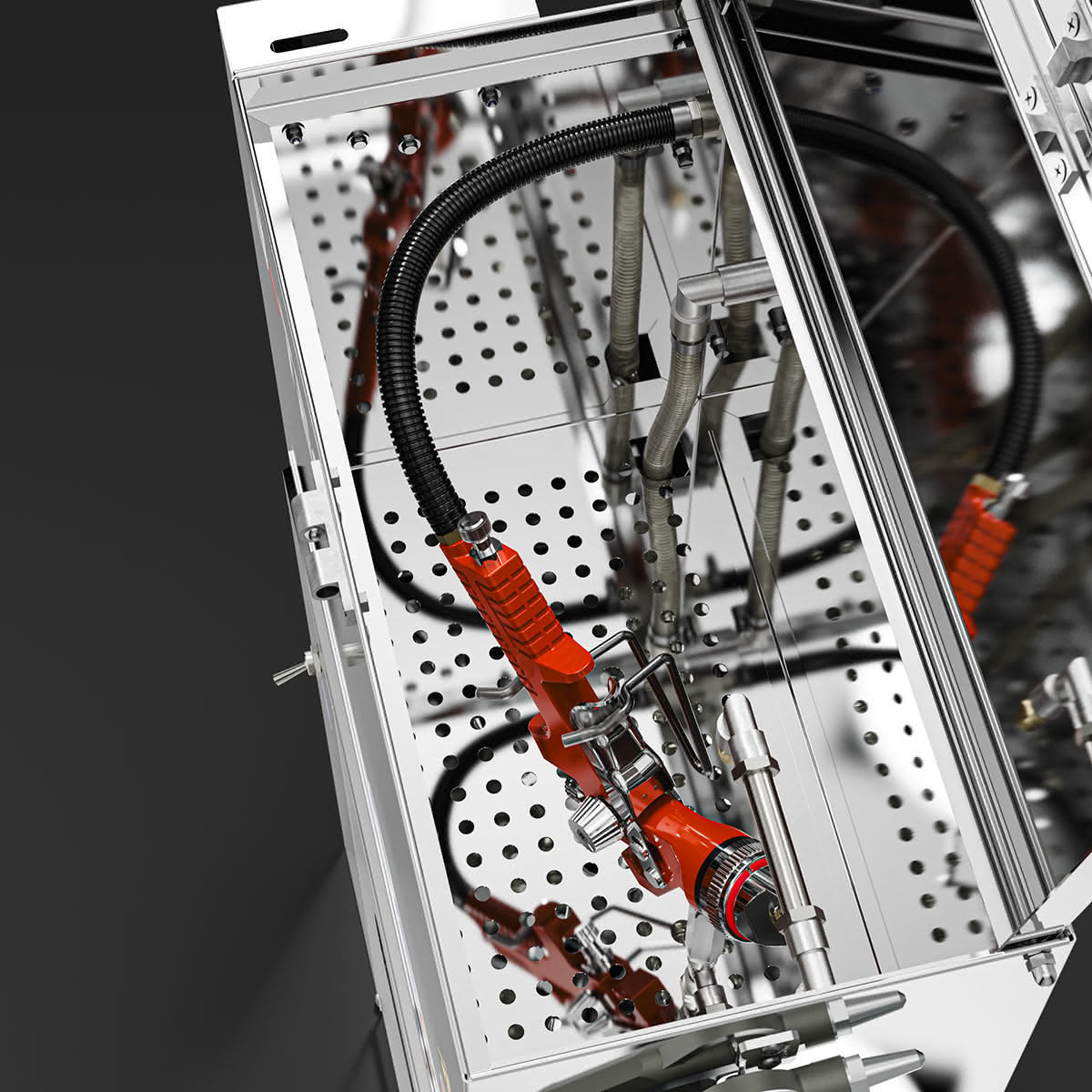

Opening of the spray / paint guns by a trigger clamp takes place inside the gun washer after the gun sits perfectly on the cleaning nozzle.
Of course connected to air by the help of the B-TEC air flow system.
Solvent or paint behind the air cap is prevented. No disassembling of the air cap required – less mechanical damage on the paint / spray gun and significant time savings.

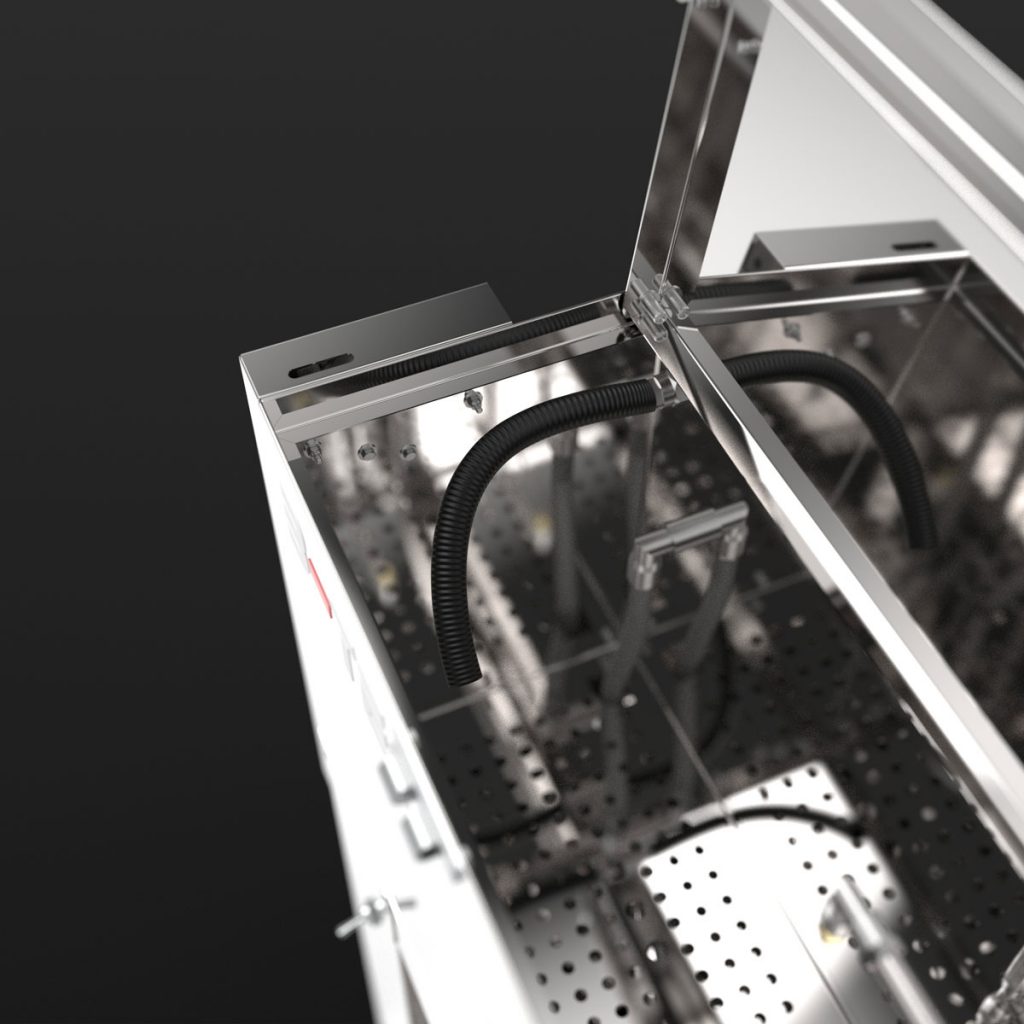

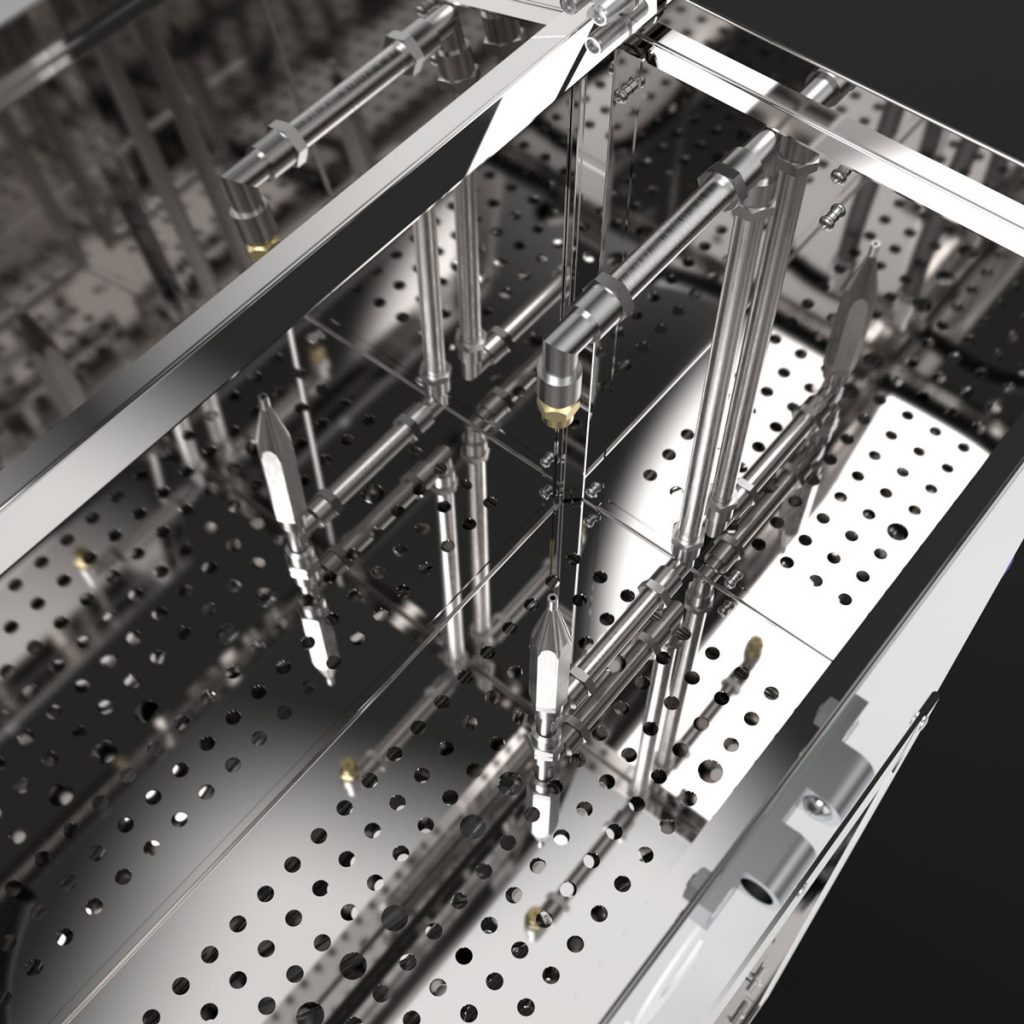

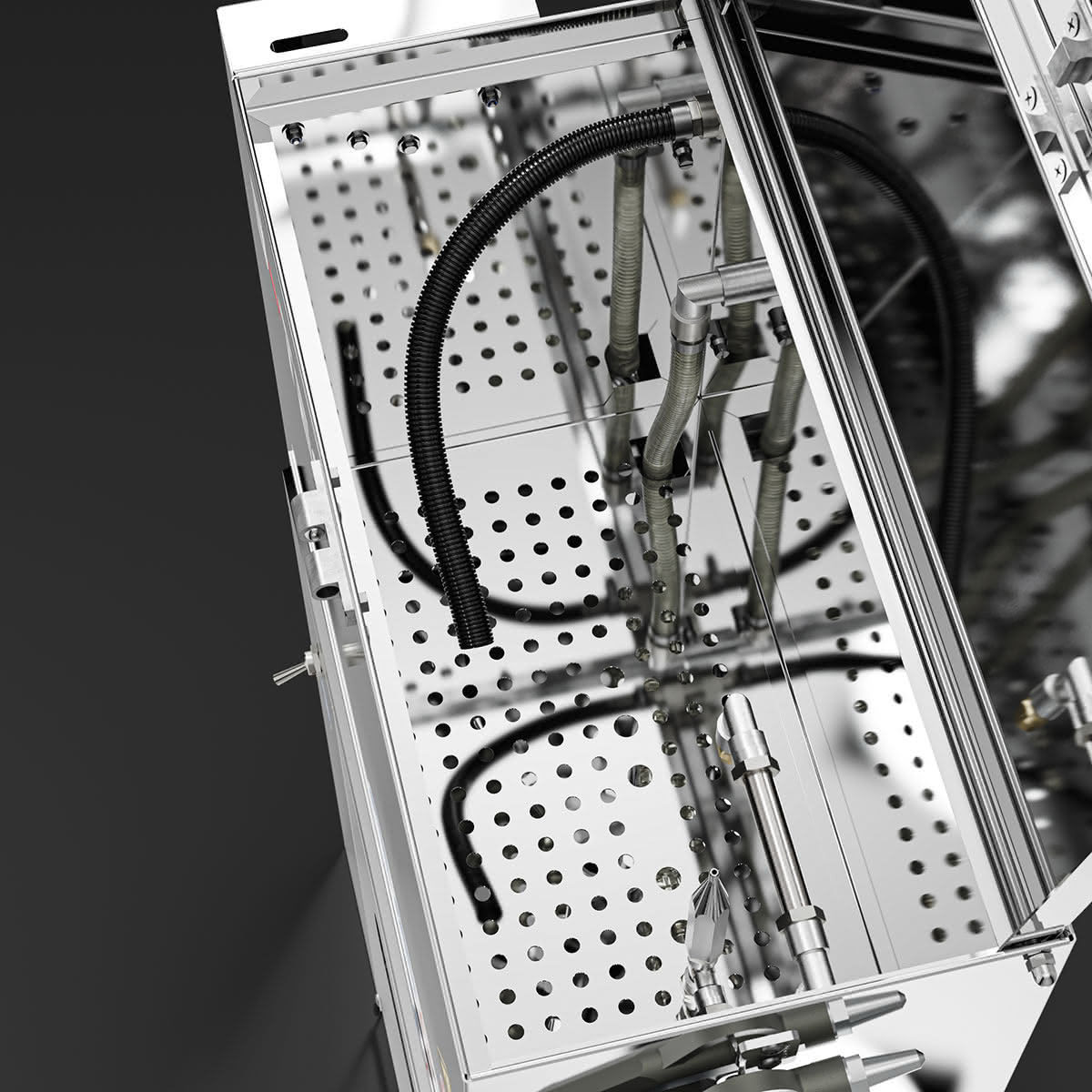

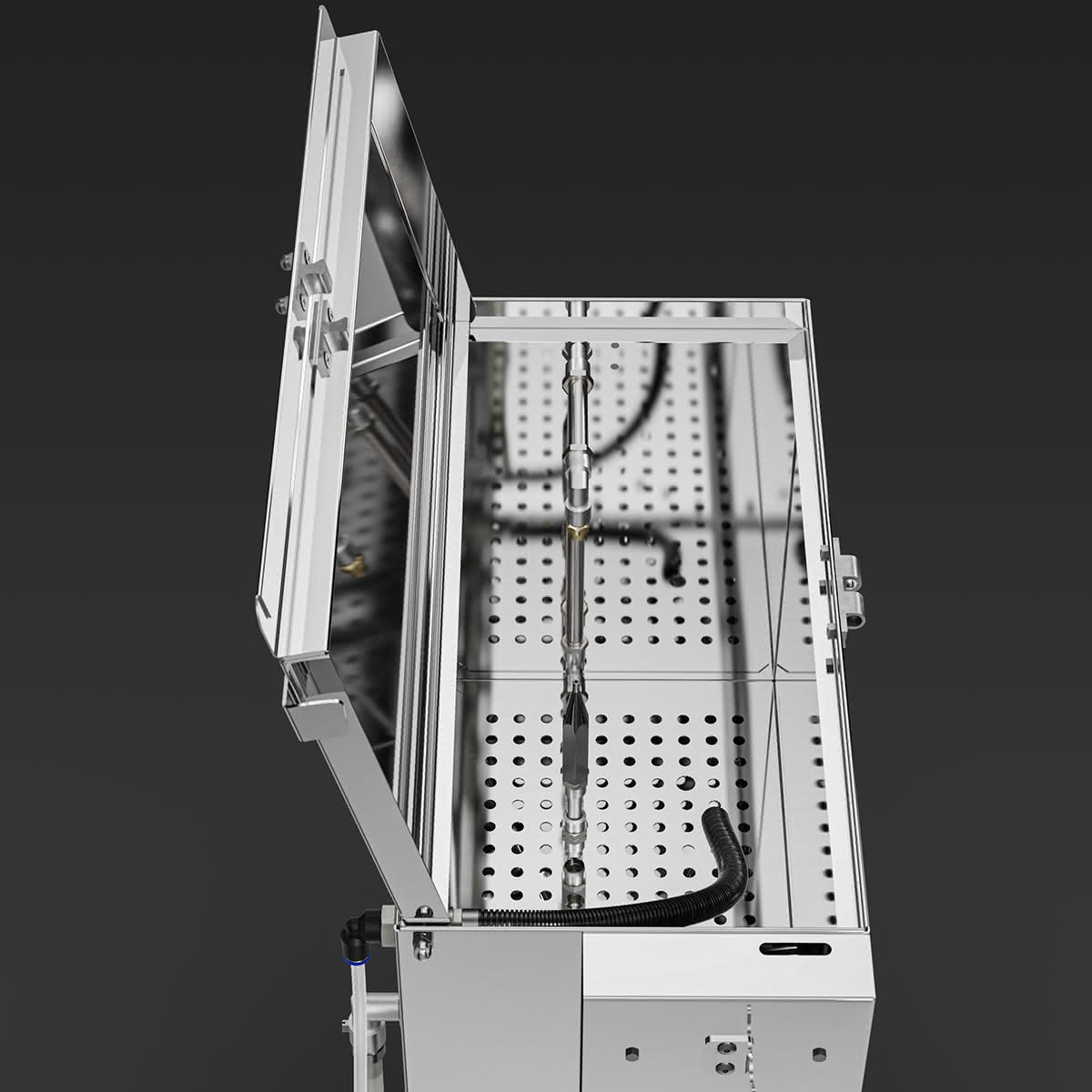

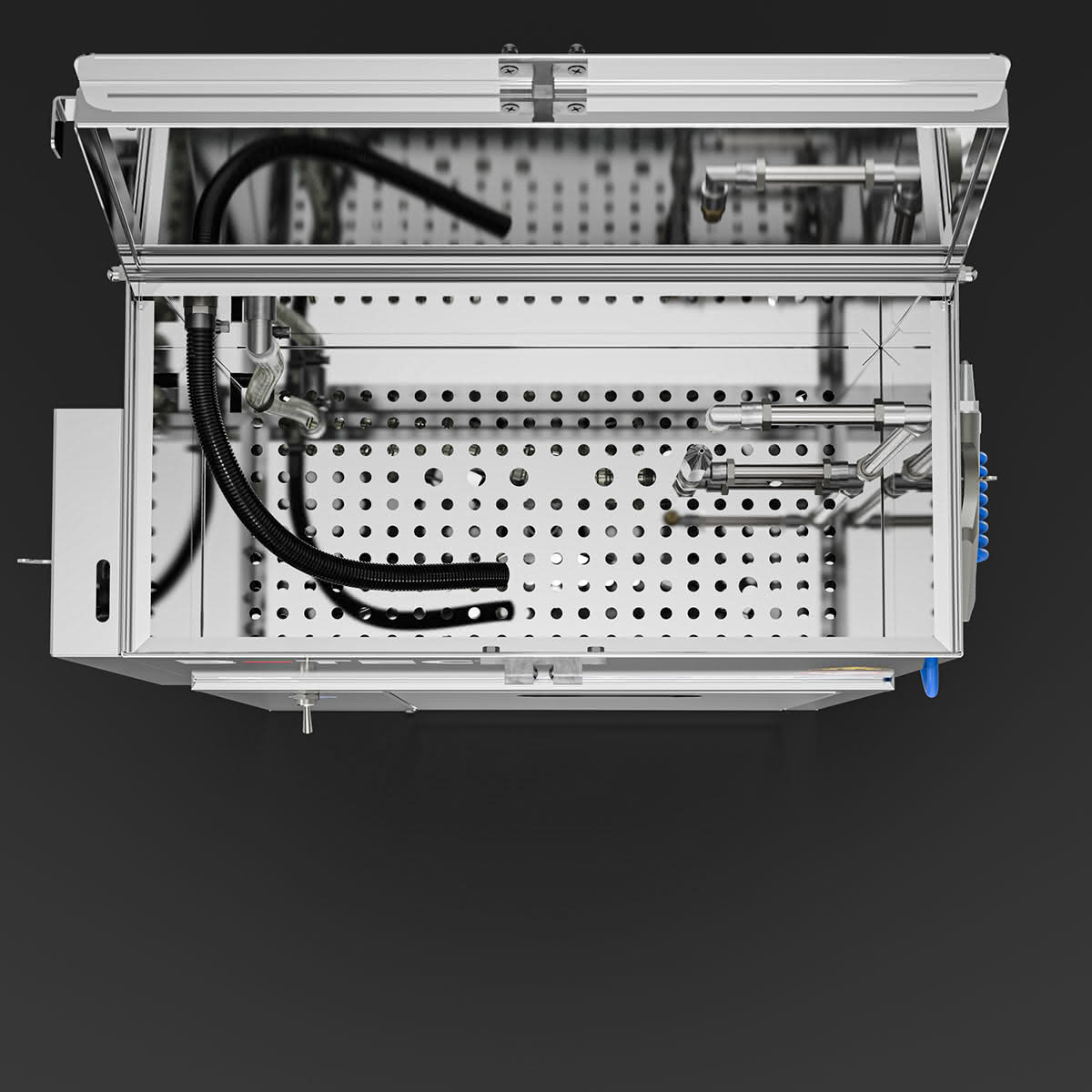

STAINLESS STEEL
Bright cleaning chambers due to the utilization of stainless steel. No utilization of light absorbing plastic.
3D View
Technical data
Unit dimensions
(width × height × depth)
530 × 950 × 250 mm
Cleaning area dimensions
(width × height × depth)
400 × 275 × 195 mm
Material
stainless steel, brass spray nozzles
Number of paint spray guns at the same time
1
Type of paint spray gun
gravity gun
