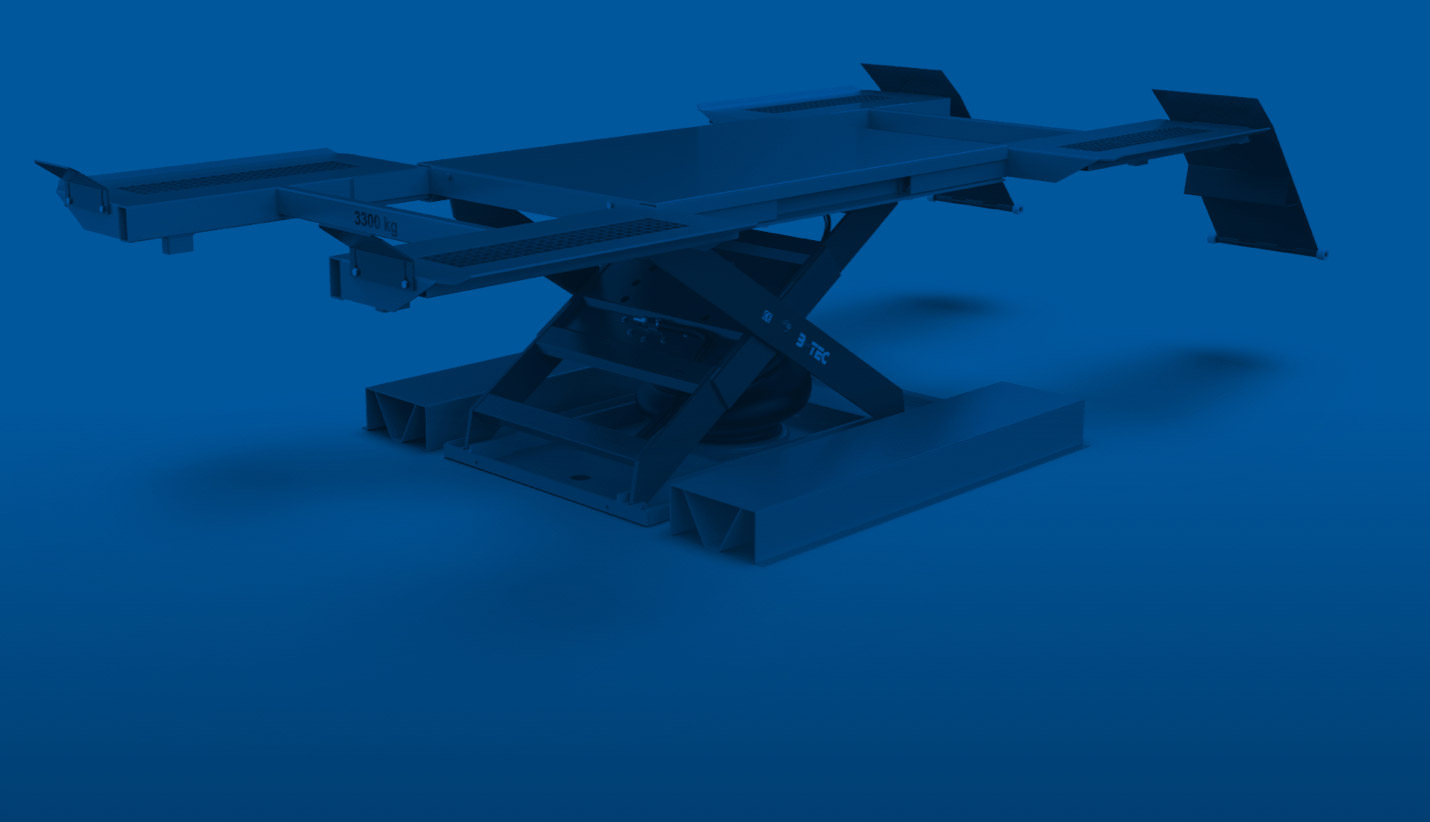

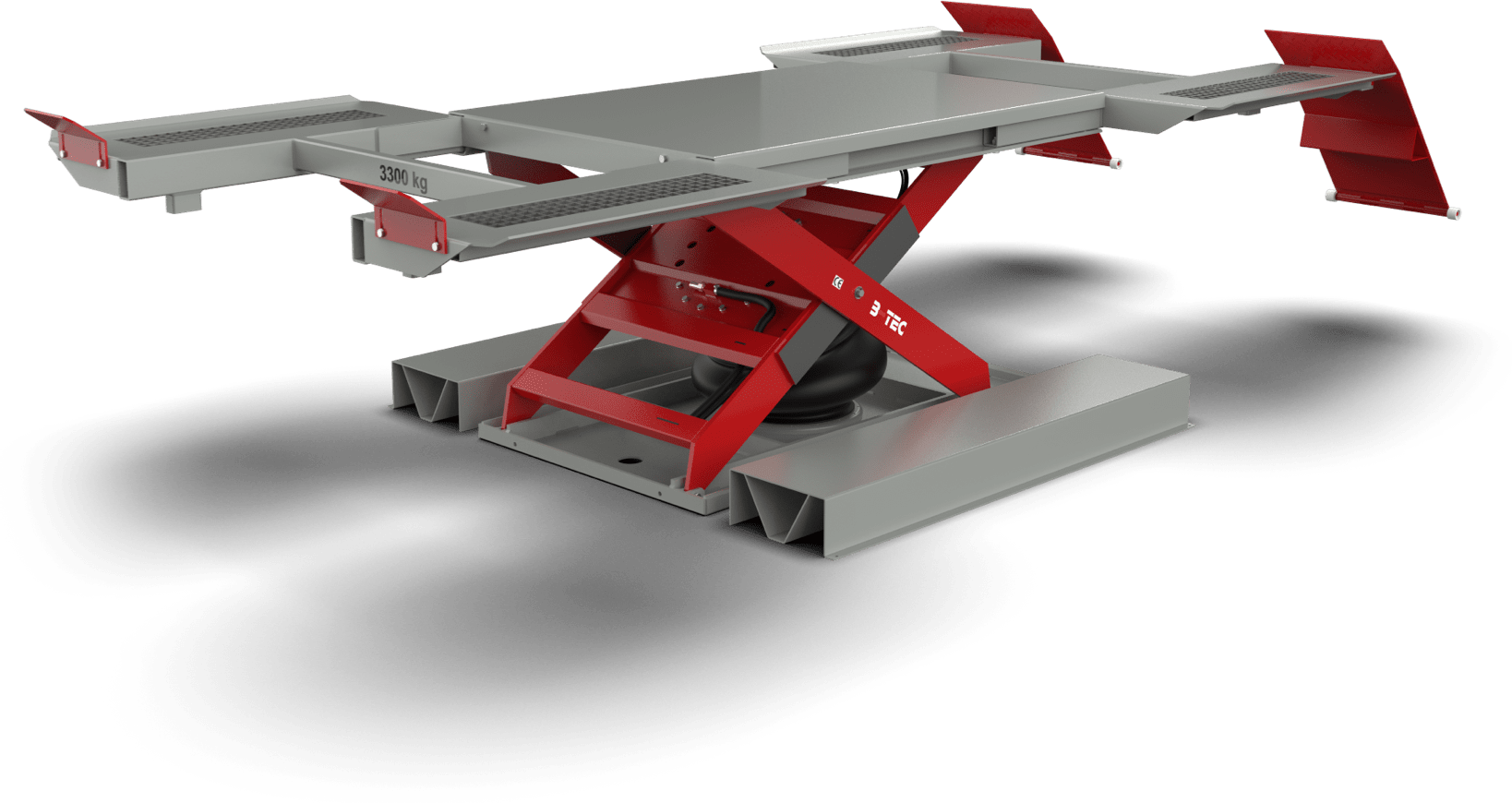

Carry-B/-S /-EB
3.3 tonnes load capacity? That’s just where we start!
Pneumatic lift for lifting vehicles standing on wheels with 3.3 tonnes lifting capacity – surface mounted or as in-ground version.
Carry-B/-S /-EB
The pneumatic B-TEC Carry lifts combine compact lift dimensions with a high lifting capacity of 3.3 tonnes.
Ideal for use where space is limited in the body and paint shop.
The B-TEC Carry is available in 3 versions
- B version: Surface mounted lift without gratings in the outriggers.
- S-version: surface mounted lift with gratings in the outriggers for draining snow and water
- EB version: In-ground lift for floor-level installation in concrete or gratings (paint booth)
And should it be a little bigger, we recommend our Carry XL with an even larger platform and up to 3.5 tonnes lifting capacity.
In comparison to hydraulic lifts in the car workshop, our pneumatic lifts work completely without oil or other paint destroying substances – a must-have in the paint refinish and body work sector.
surface mounted (Carry-B/-S) or in-ground version (Carry-EB).
GALLERY

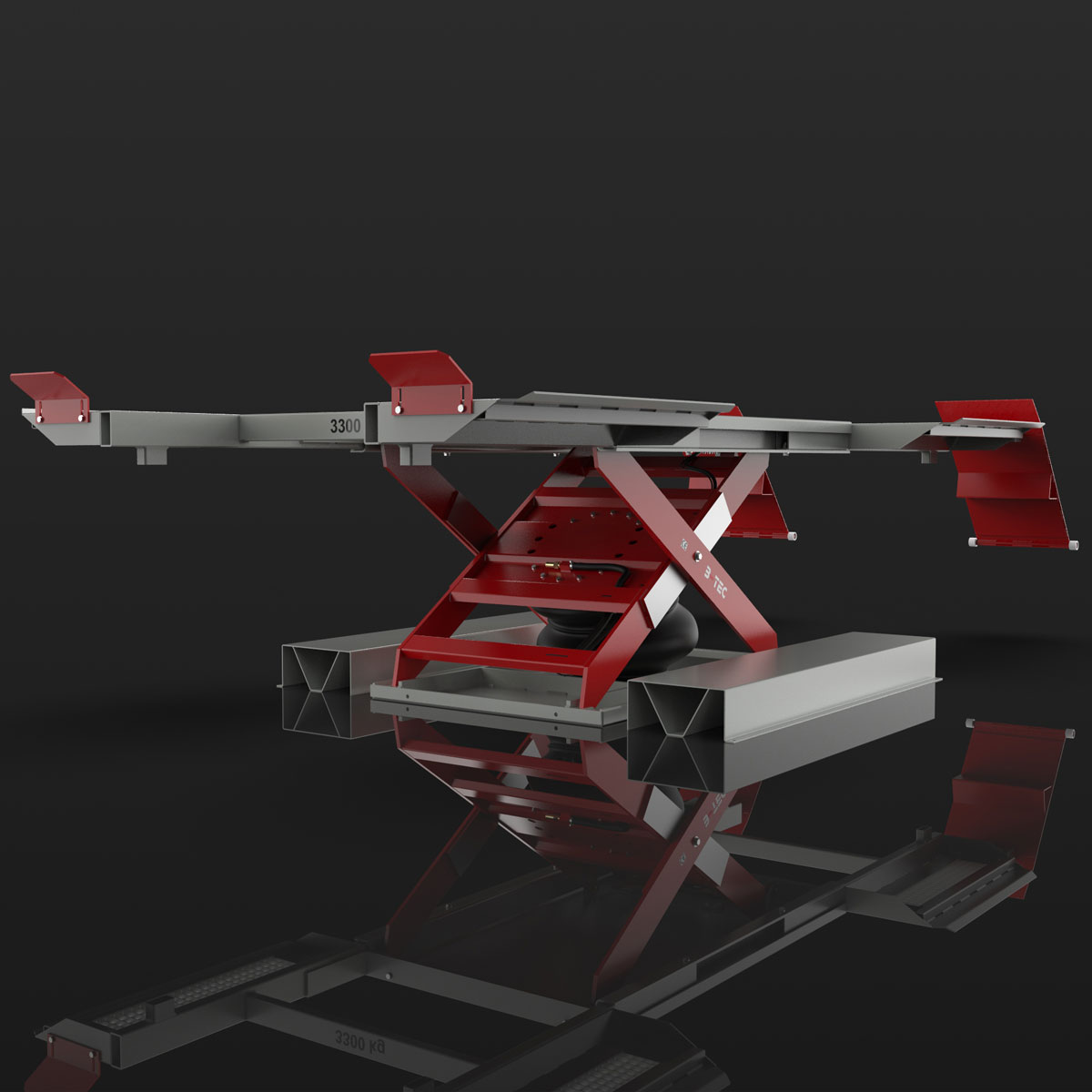

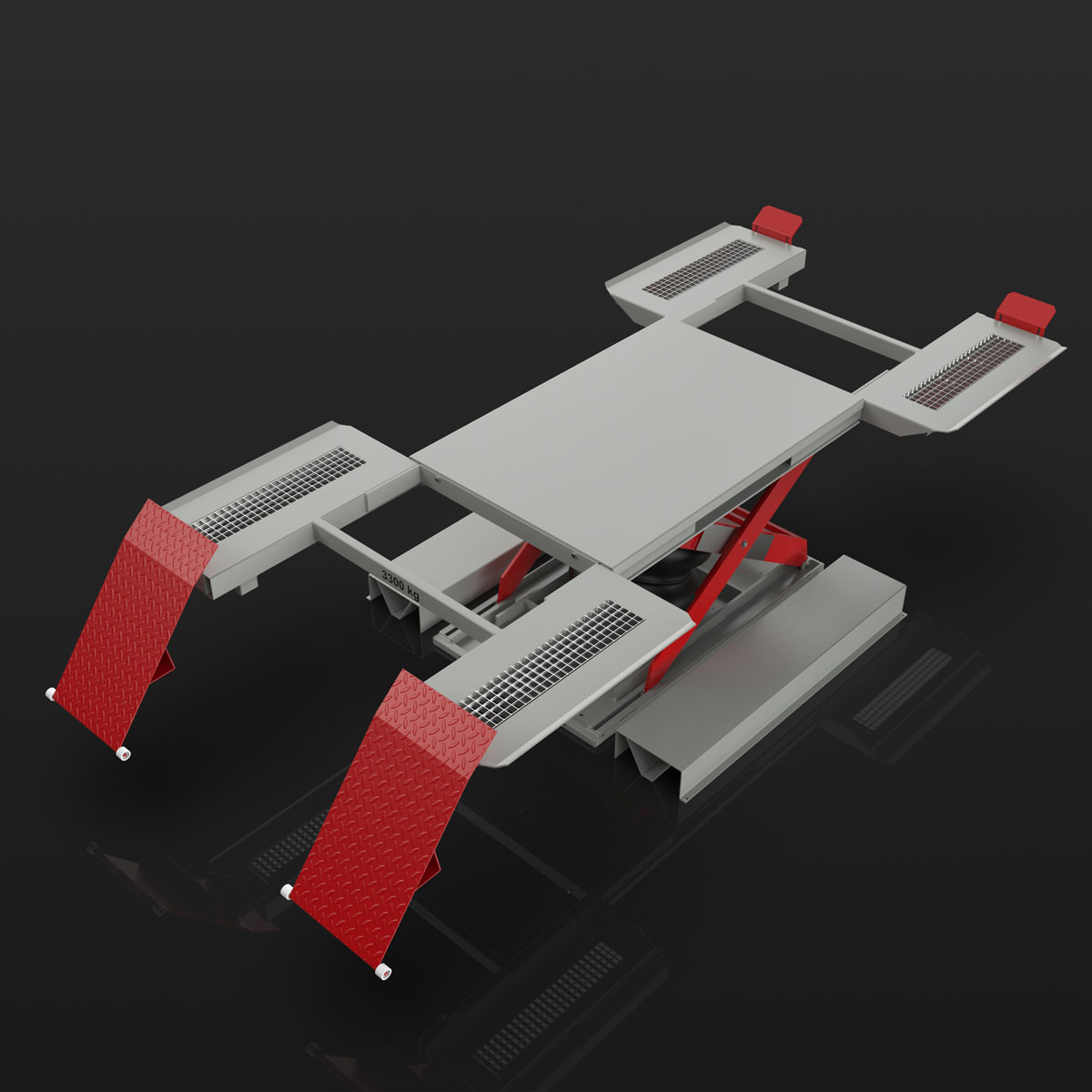

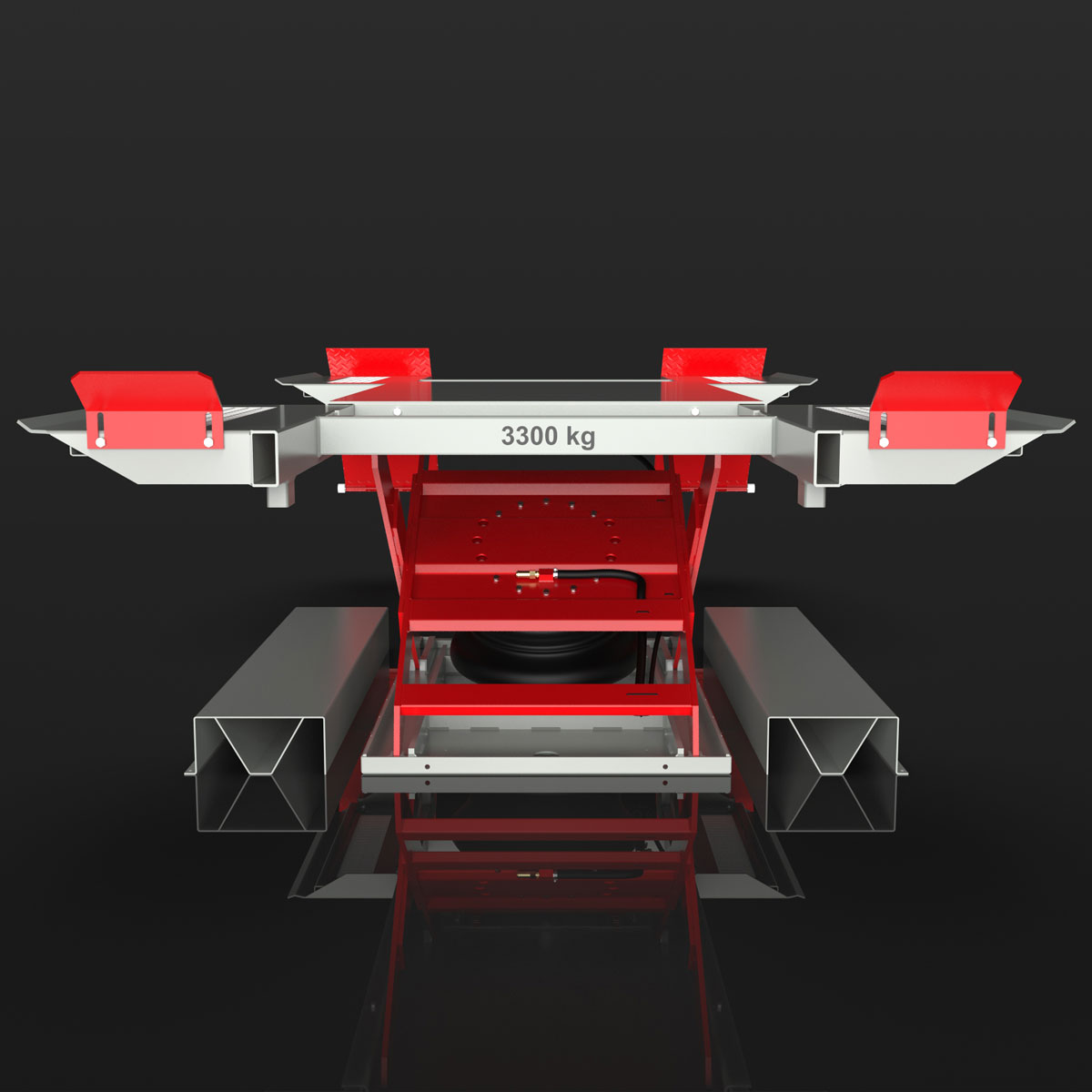

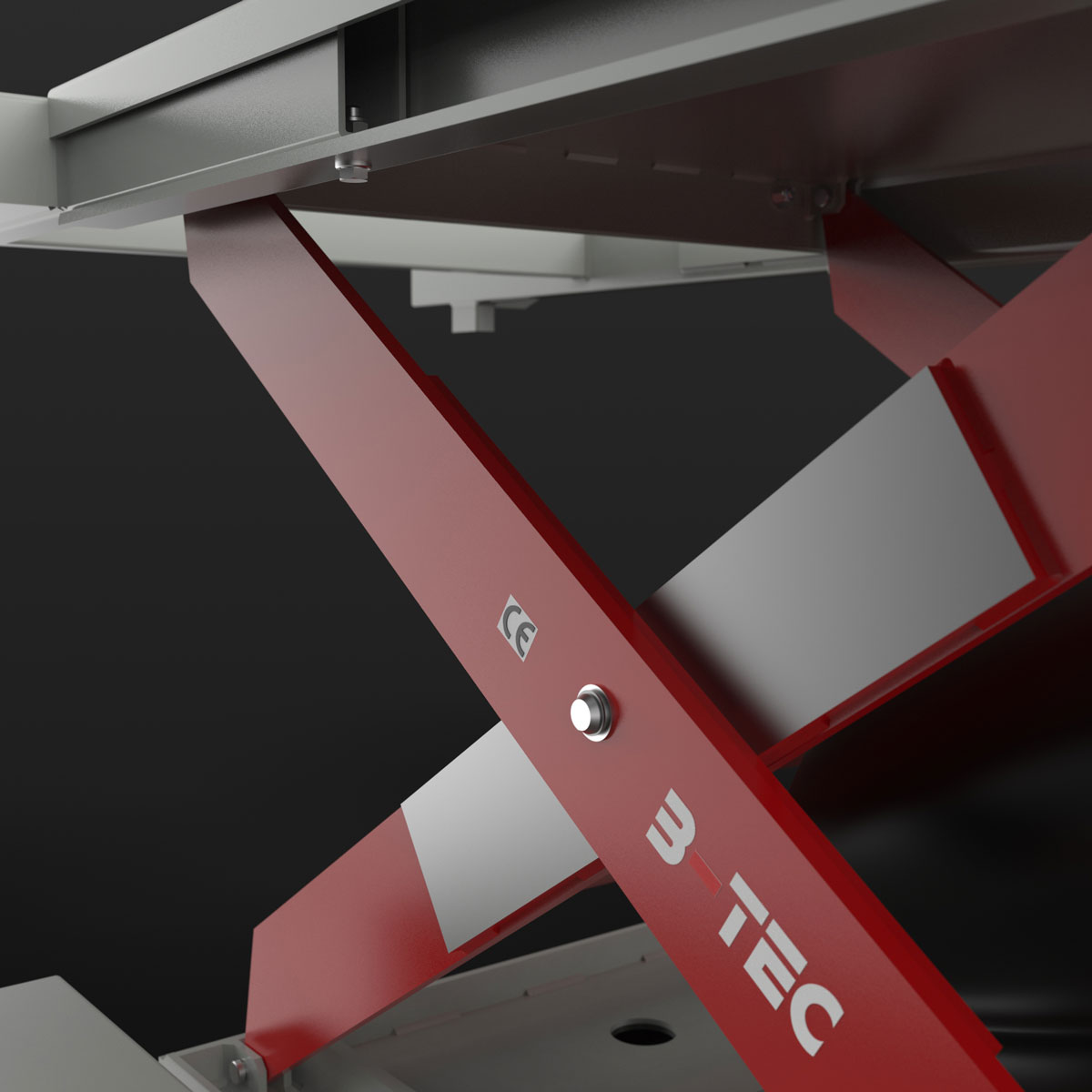

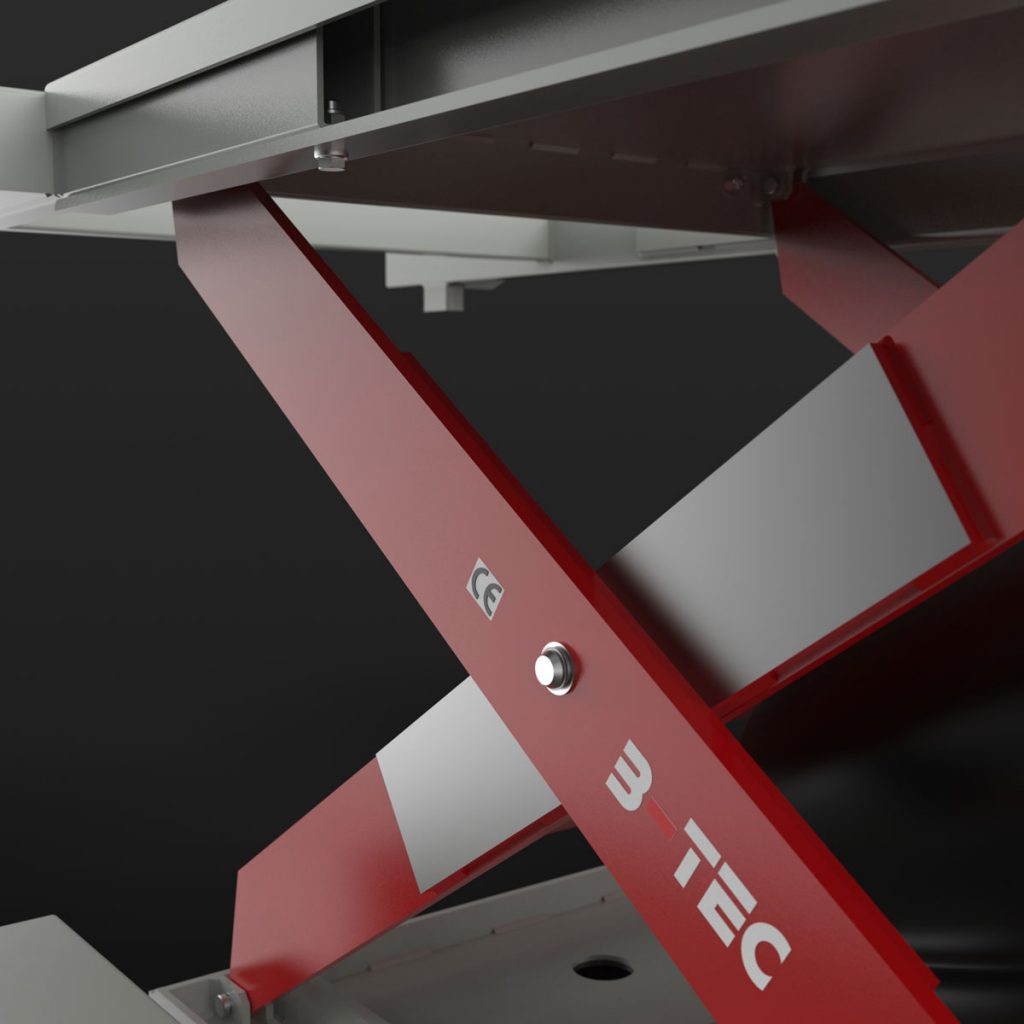

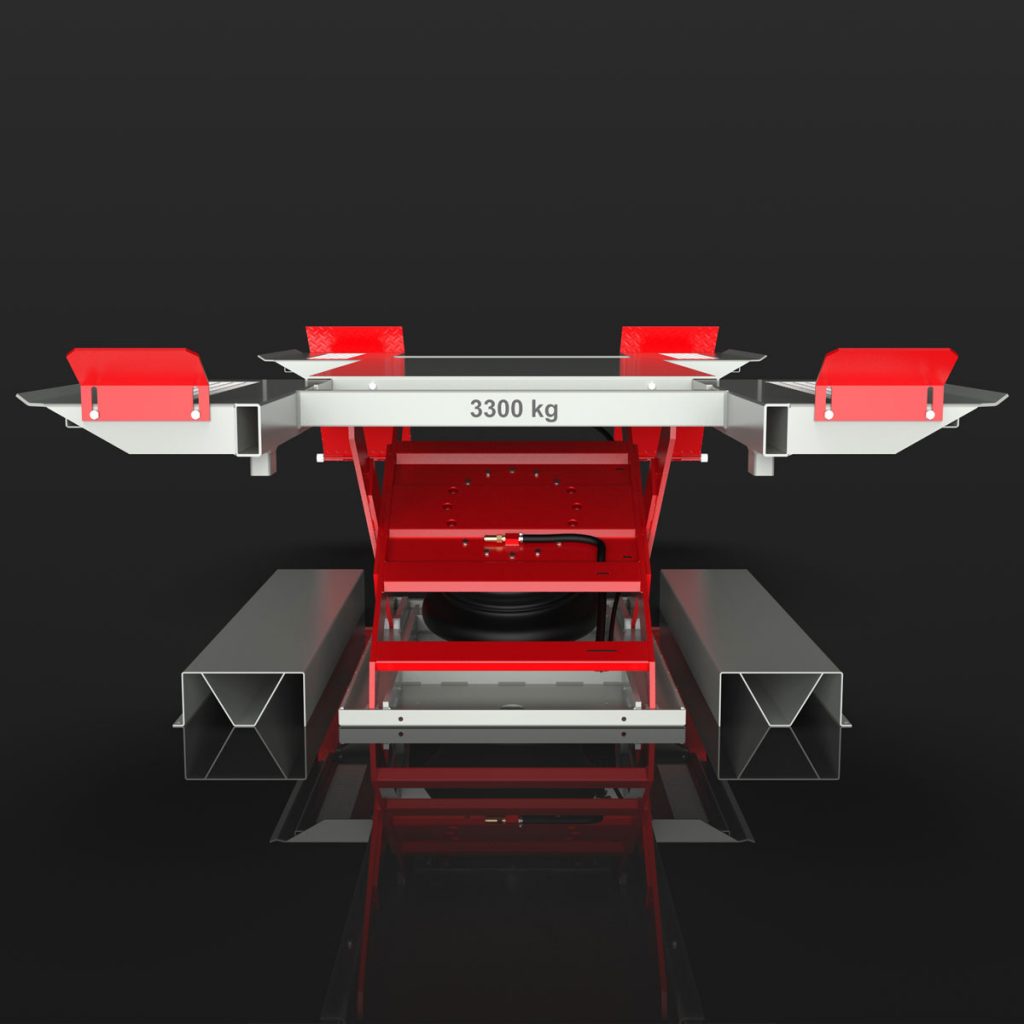

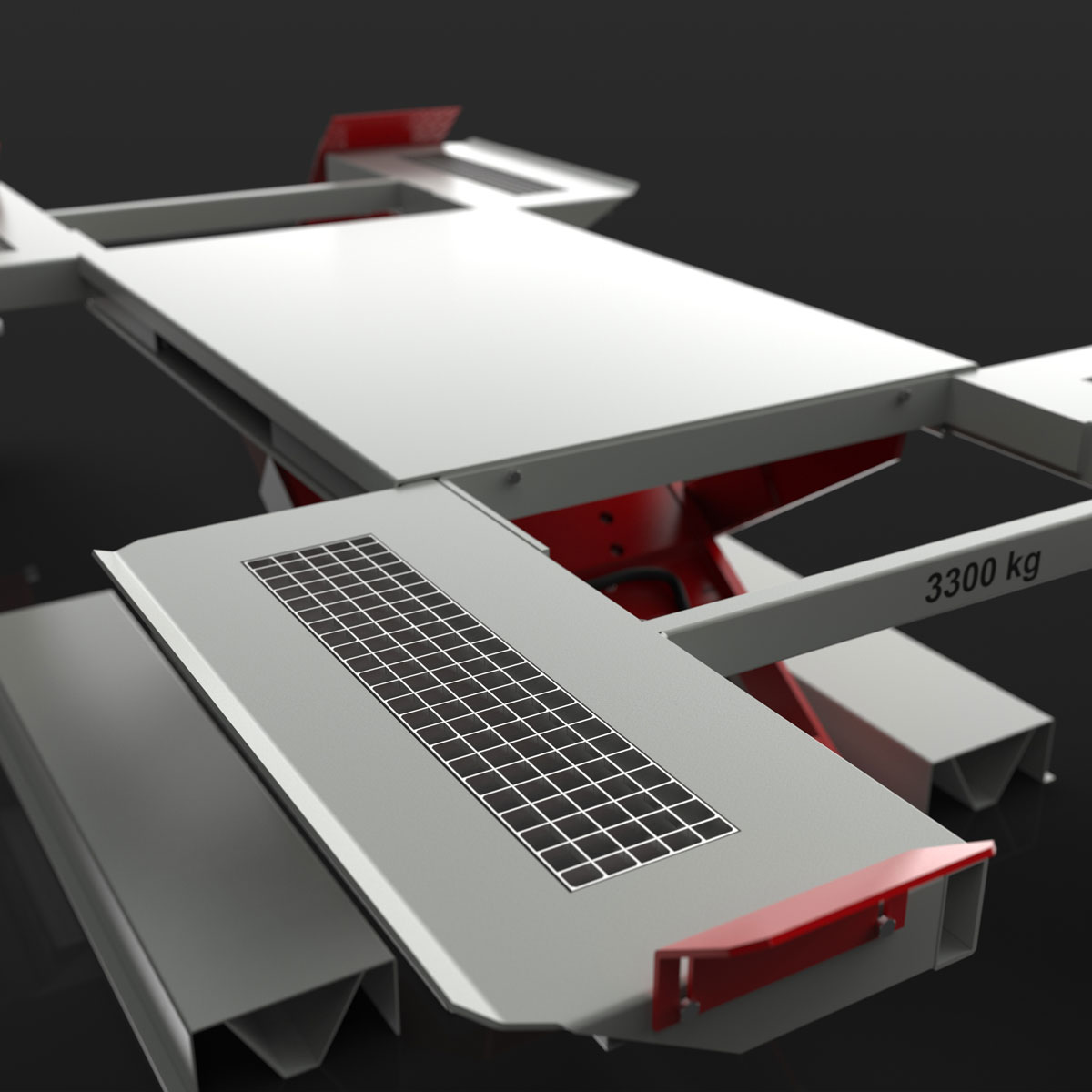

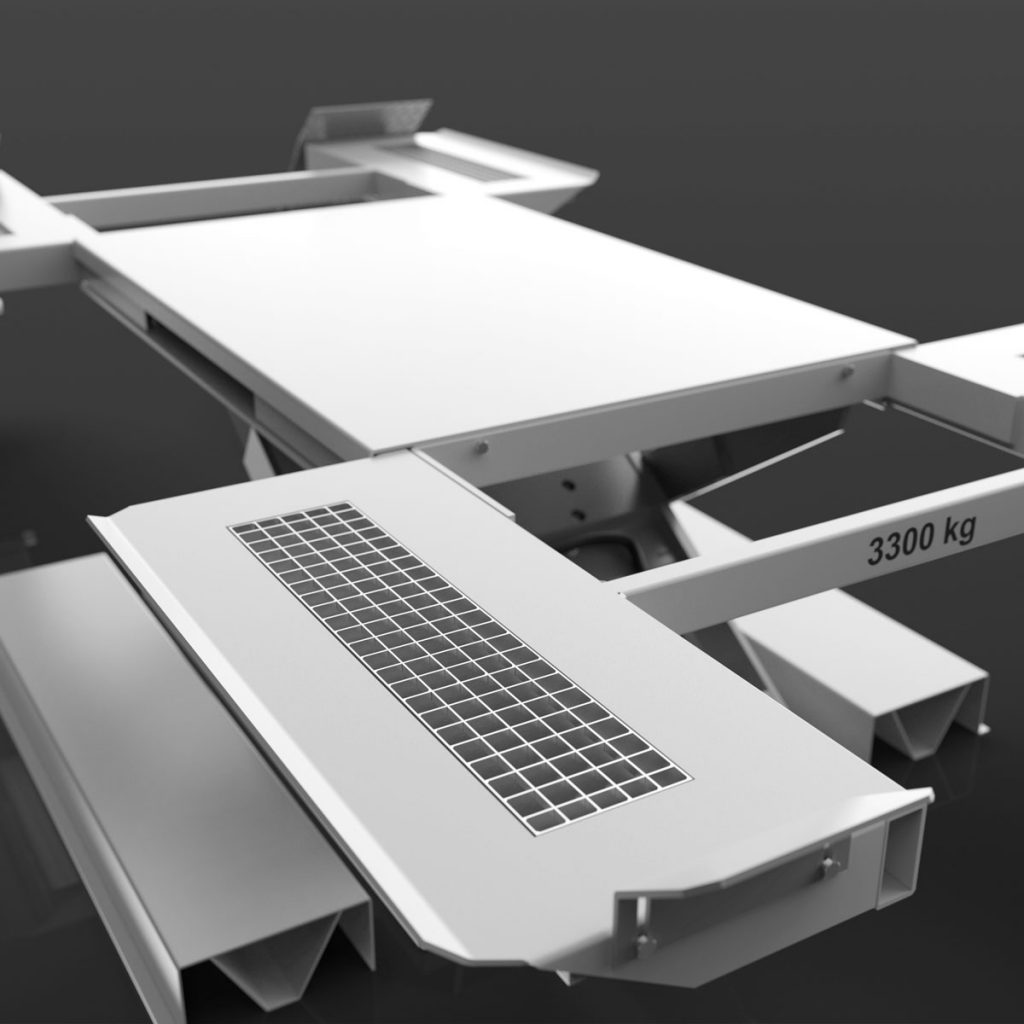

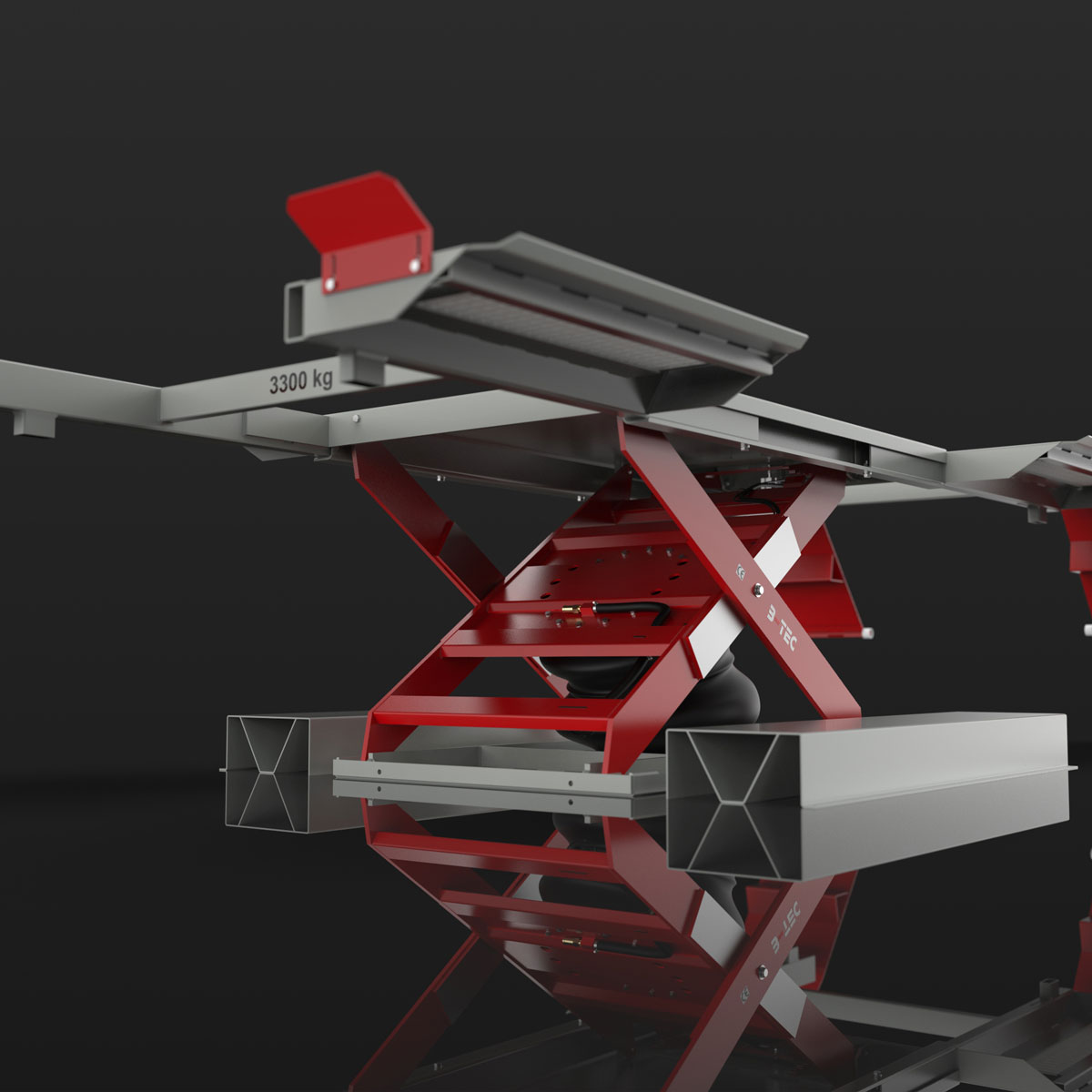

Carry-S
Carry-S
Carry-S Carry-S
Carry-S
Carry-S
Carry-S

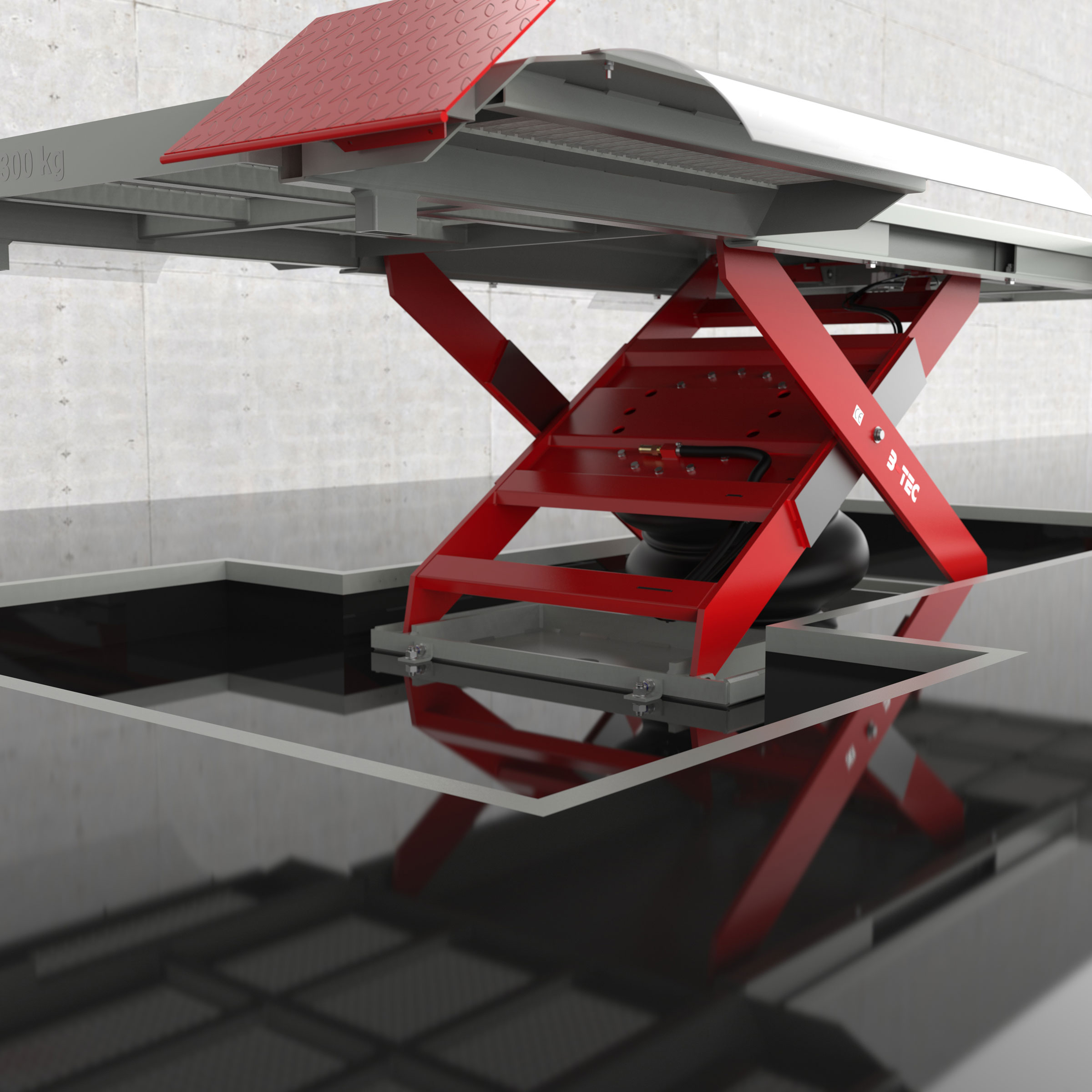

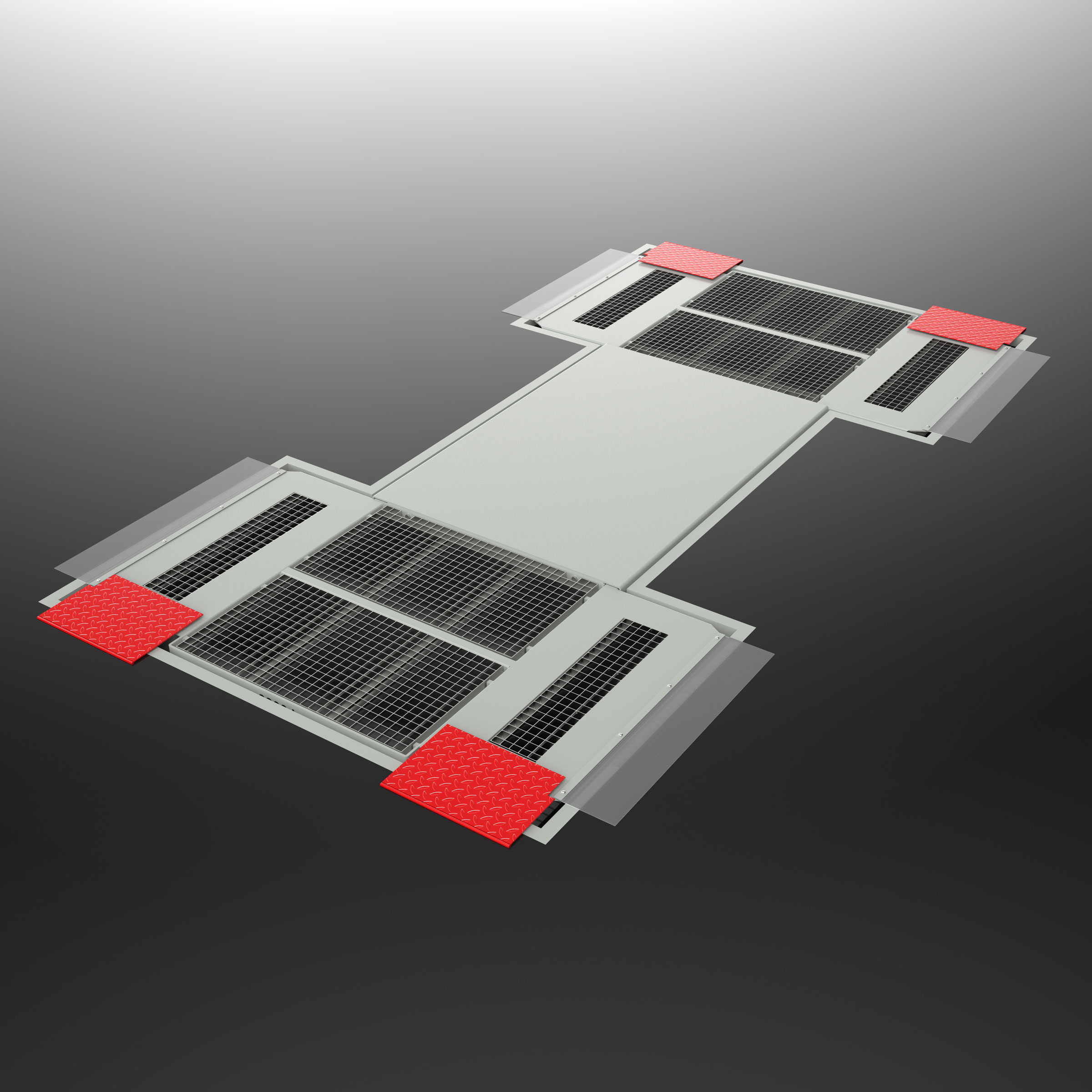

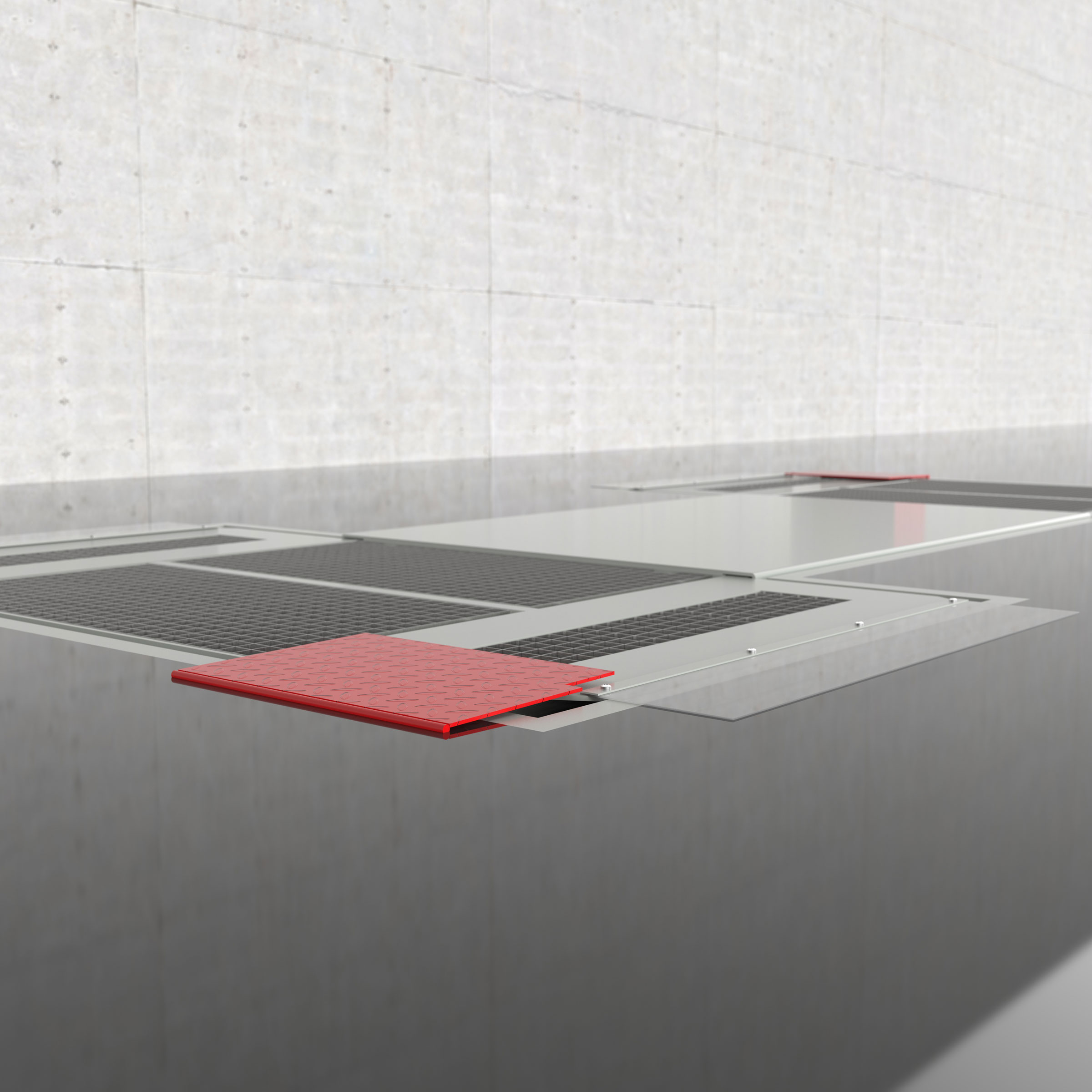

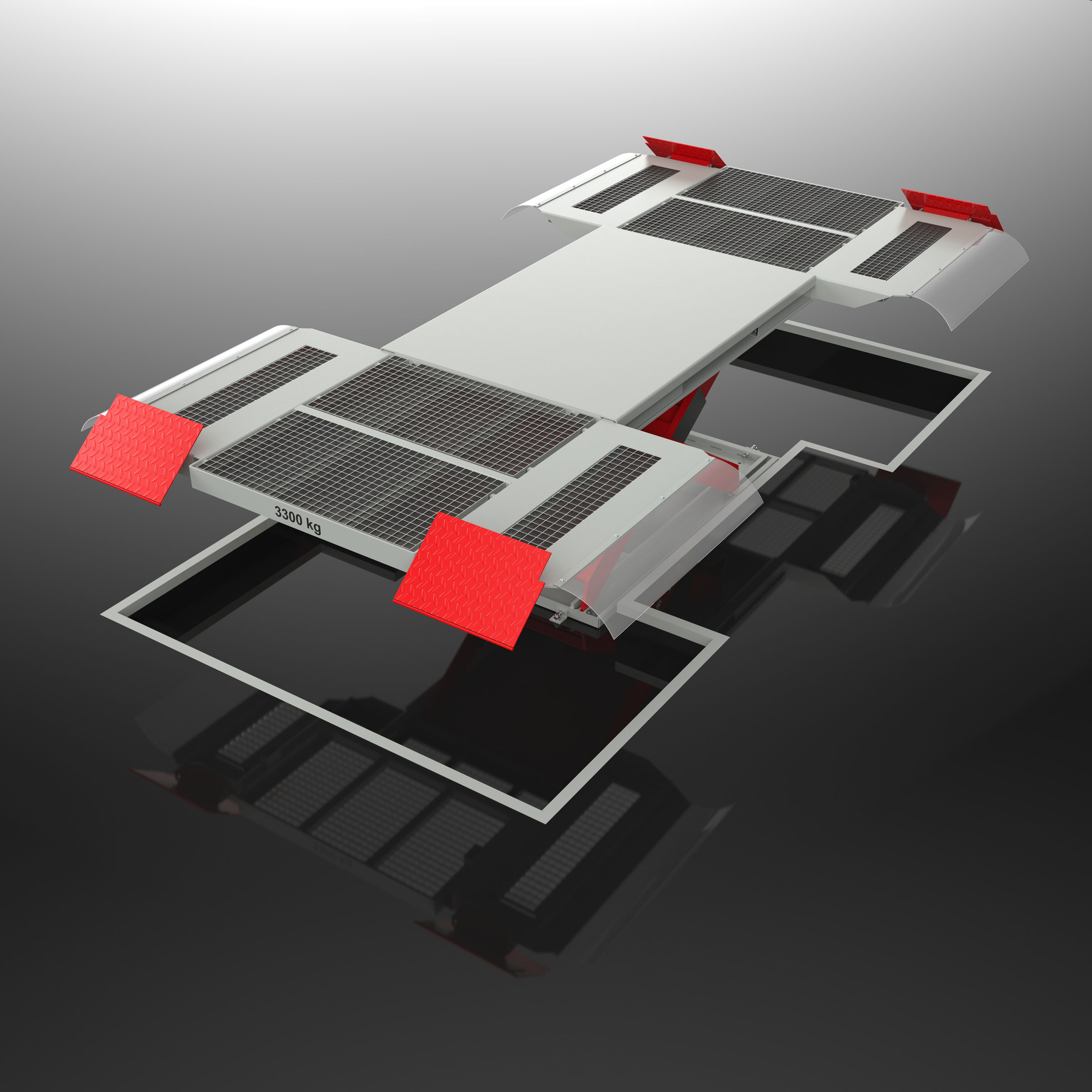

Carry-EB
Carry-EB
Carry-EB
Carry-EB

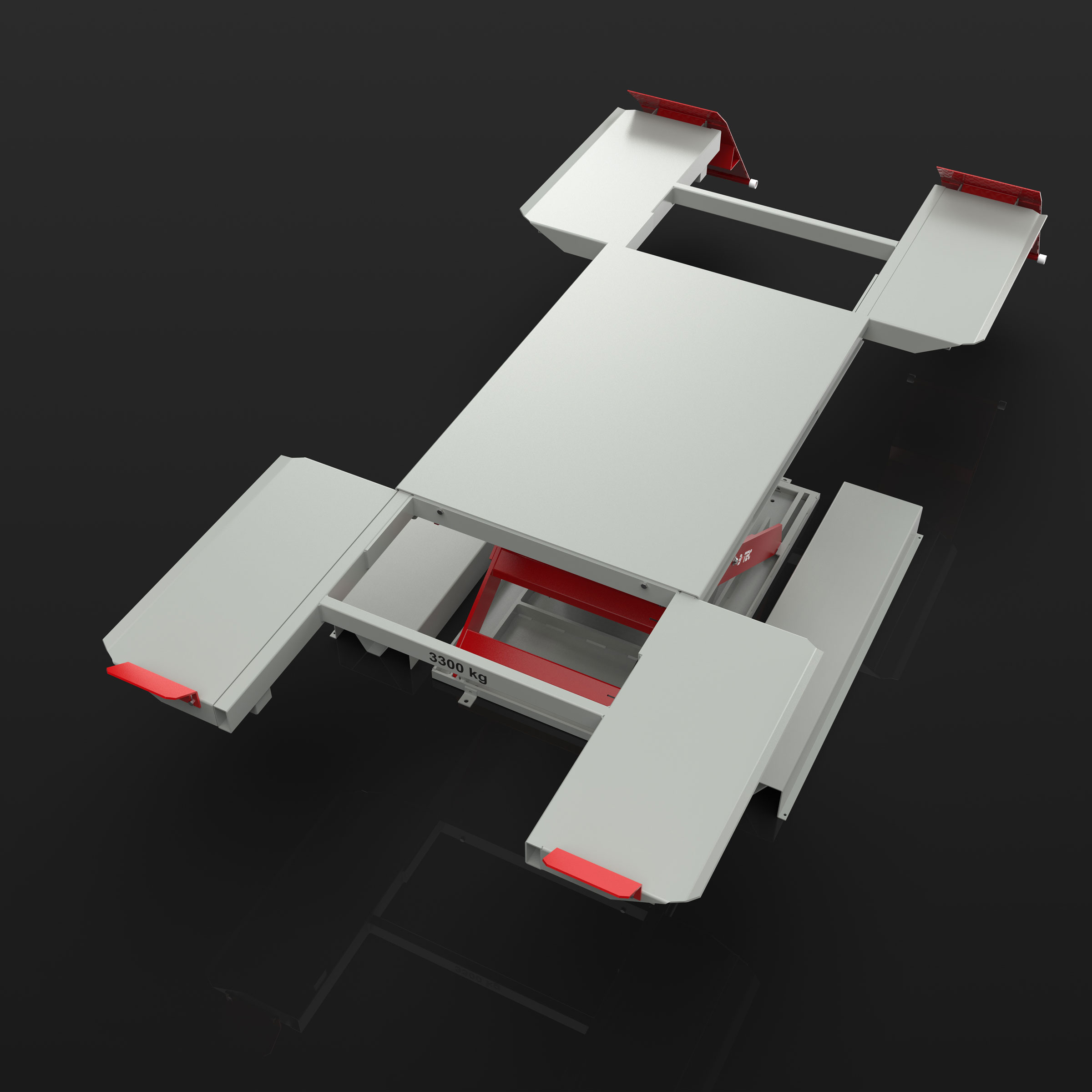

Carry-B
Highlights
- 3.3 tonnes lifting capacity
- provides a better ergonomic working height and therefore improves the work quality
- enables a working height of up to 1.280 mm
- double safety feature with protected fall-safeguard

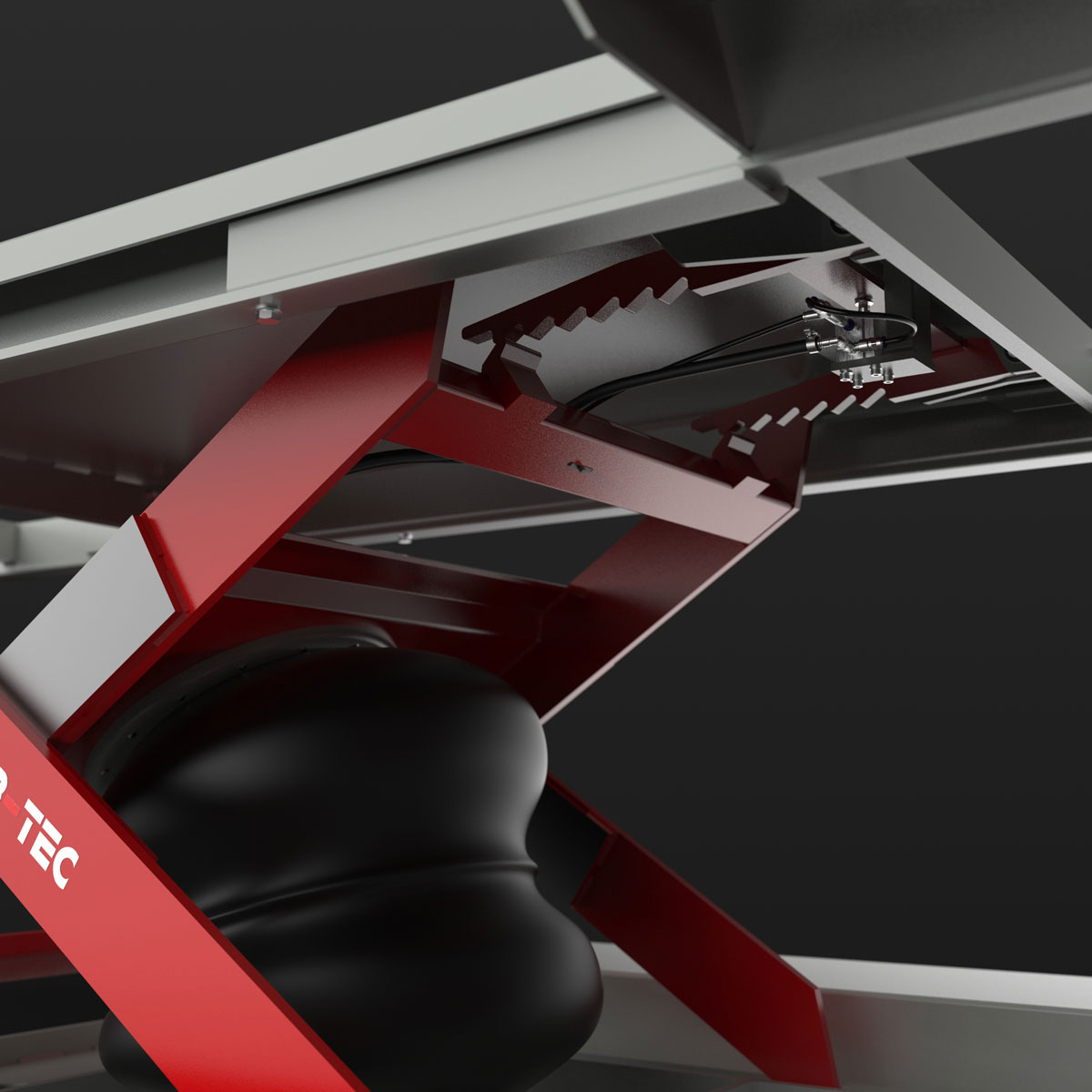

- air bellows installed below the scissor – hence almost flat upper surface
- high-quality one piece air bellows
- gratings inside the Carry-S and Carry-EB outriggers enable water and snow to drain away
- surface mounted version (Carry-B/ -S) or in-ground version (Carry-EB)
- weight: 876 kg (Carry-B), 883 kg (Carry-S), 853 kg (Carry-EB)
- Option: Part or full zinc spraying of the lift
3D VIew
Technical data
Lifting capacity standing on wheels
3.300 kg
Effective stroke
790 mm
Overall height min.
Carry-S/-B: 160 mm
Carry-EB: 0 mm
Overall height max.
Carry-S/-B: 950 mm
Carry-EB: 790 mm
Working height
Carry-S/-B: approx. 1.280 mm
Carry-EB: approx. 1.120 mm
